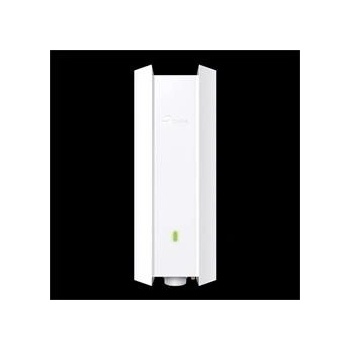

TP-Link AX1800

EAP615-Wall

Nástenný prístupový bod AX1800 s Wi-Fi 6

• Neuveritelné rýchlosti siete Wi-Fi 6: Simultánna rýchlosť 574 Mbit/s v pásme 2,4 GHz a 1 201 Mbit/s v pásme 5 GHz poskytujú výslednou prenosovou rýchlosťou 1 775 Mbit/s v sieti Wi-Fi.**
• Vysoko výkonné možnosti pripojenia: Zaistenie vyššej efektivity siete a nižšia latencia.
• Štyri gigabitové porty: 4 gigabitové ethernetové porty (1× odchozí + 3× prichádzajúci), jeden z hosťujúcich portov podporuje technológiu PoE, ktorá poskytuje elektrické napájanie pre pripojené zariadenia.‡
• Centralizovaná správa: Integrace s platformou Omada SDN umožňuje cloudový prístup a vzdialenú správu.
• Zabezpečená sieť pre hostí: Poskytuje niekoľko možností overovania (SMS / Facebook Wi-Fi / Voucher atď.) a rad technologií pre zabezpečenie bezdrôtových sietí.†

Jednoduchá inštalácia a podpora PoE

HARDWARE FEATURES

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af/at PoE

• Power Consumption EU: 10W (802.3at PoE, PoE Out off)
• US: 11.5W (802.3at PoE, PoE Out off)

Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna 2 Dual-Band Antennas

• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps

Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

Wireless Security • Captive Portal Authentication†

• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE, FCC, RoHS

Package Contents • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall

• Installation Guide
• Mounting Kits

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
