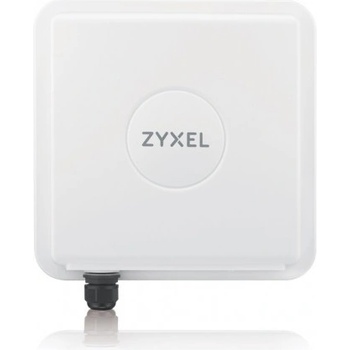

ZyXEL LTE7490-M904-EU01V1F

Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router supports Cat. 18 and perfect for the operators who are looking for 4G LTE FWA solutions to deliver ultra-fast and high-capacity premium broadband services with deployment flexibility.

Lightning-fast internet connectivity

The Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router employs 3GPP UE downlink Category 18 – the top-level LTE technology with downlink data rates of up to 1.2 Gbps through 12 spatial streams on three component carriers.

Built-in 4x4 MIMO high-gain antenna

The Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router provides 4x4 MIMO high-gain antennas of up to 7 dBi per element that work effectively in outdoor environments. The outdoor design enables it to work under near non-line-of-sight conditions to increase coverage and bandwidth as well as to eliminate edge corners having difficulty accessing good signals.

Strengthen your competitive edge with Fixed Wireless Access (FWA)

Deploying LTE7490-M904 as part of FWA allows you to extend your 4G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection.

Non-stop connectivity with LTE 2nd WAN for failover

The wireless LTE allows you to take advantage of the 2nd WAN without a cabling plan. As long as the gateway supports "Dual-WAN Failover", you can just connect Zyxel LTE7490-M904 to the existing gateway and set LTE as the failover WAN and relieve the risk of network outage.

IP networking

Supports IPv4/IPv6 dual stack (NDP IPv6)

DHCP server

Supports ICMP

Virtual Private Network (VPN) passthrough

Supports NAT/NAPT

Supports NAT DMZ

Supports port forwarding/triggering

Supports ALG

Routing

Supports router mode

Supports bridge (IP pass-through) mode

Supports dynamic DNS for first APN

Supports remote management under bridge mode

IP firewall

Firewall can be enabled or disabled via GUI

DoS attack prevention

Supports SPI

Application-level firewall

Filters LAN MAC addresses

Filters URLs

Management

Supports local/remote device management and firmware upgrade via TR-069, HTTP/web GUI and FTP

APN management

Account management

PIN/PUK management

Network selection

Operating frequency band selection

CLI/SSH (local and remote SSH access)

Supports UPnP IGD

Supports SSH with key access certification management

Supports bandwidth/quota management

Supports mobile apps (iOS and Android) for easy installation and local management only

Supports remote throughput testing by TR-143

WiFi Protected Setup (WPS)

Hidden SSID

LTE interface

• Standard-compliant: 3GPP UE DL Category 18, UL Category 13
• Supports LTE bands: B1/B3/B5/B7/B8/B20/B28/38/40/41

Supports DL transmission mode TM1/2/3/4/6/7/8/9

LTE antennas: 4 embedded directional antennas of up to 7 dBi/element (4x4 MIMO)

Supports DL 5xCA**, 2x2 MIMO

Supports DL 3xCA, 4x4 MIMO, B1/3/7**

Supports DL modulations QPSK, 16-QAM, 64-QAM and 256-QAM

Supports UL modulations QPSK, 16-QAM and 64-QAM

Supports UL 2xCA** intra-band, B3/7/38/40/41

Peak data rates:

• DL: 1.2 Gbps within 100 MHz bandwidth
• UL: 150 Mbps within 40 MHz bandwidth

UMTS Air interface

Standard-compliant: WCDMA bands 1/3/5/8

Supported frequencies:

• HSPA+/UMTS: 2100/1800/900/850 MHz (bands 1/3/5/8)
• WCDMA: 2100/1800/900/850 MHz

HSPA+ downlink data rates up to 42 Mbps

HSUPA uplink data rates up to 5.76 Mbps

WiFi Air interface***

Wireless standards: 802.11 b/g/n, 2.4 GHz, 300 Mbps

Wireless omni antennas:

WiFi 2.4 GHz: 2x2 internal antennas up to 3 dBi

Hardware Interface

One Gigabit RJ-45 PoE LAN port

One LED indicator for:

Power status

Internet status

LTE signal strength

WiFi status

LAN status

One WiFi on/off button

One 3FF micro SIM card socket

One reset to default button

Power specifications

Standard 802.3af/at Power over Ethernet (PoE)

Power consumption at PoE < 16 W

Power consumption 16 watt (peak)

Physical specifications

• Item dimensions (WxDxH): 254 x 255 x 58 mm (9.99” x 10.03” x 2.28”)
• Item weight: 1100 g (2.43 lb.)
• Package dimensions (WxDxH): 280 x 402 x 108 mm (11.02” x 15.83” x 4.25”)
• Package weight: 2520 g (5.55 lb.)

Environmental specifications

Ingress Protection rating

IP68 harden for outdoor environments

Lightning protection

K.21 enhanced mode, 6 kV

Operating environment

• Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% (non-condensing)

Storage environment

• Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 95% (non-condensing)

Certification

CE

WEEE (Waste Electrical and Electronic Equipment) Directive certification

RoHS (Restriction of Hazardous Substances) Directive certification

HSF (Hazardous Substance Free)

European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste

Package contents

Standard 802.3af/at Power of Ethernet (PoE) injector 1.8 m Ethernet cable yellow 8P8C

Power cord

PG19 thread (cable gland)

Quick Start Guide

Warranty card

DoC and safety warning

Wall/pole mounting kit

Wire grounding kit
