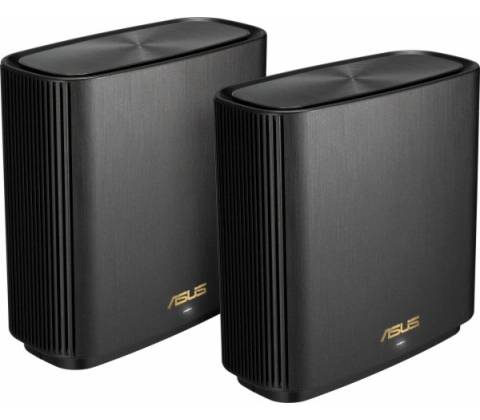

Asus AX7800

ASUS ExpertWiFi EBM68 Business Mesh System

Your Business WiFi Expert Within Reach

The ASUS ExpertWiFi EBM68 provides a fast, secure, and scalable network with rich features tailored for small-to-midsized businesses. Whether used independently or extended with other ASUS ExpertWiFi solutions, the ExpertWiFi EBM68 can easily adapt to your business network needs.

ASUS ExpertWiFi EBM68

Model Name

EBM68

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX7800 ultimate AX performance : 574+2402+4804Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps
• WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps

Antenna

Internal antenna x 6

Transmit / Receive 2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4

Processor 1.7 GHz quad-core processor

Memory 256 MB Flash 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency 2.4 GHz 5 GHz-1 5 GHz-2

Operating Mode

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

I/O Ports

RJ45 for 2.5G BaseT for WAN x 1

RJ45 for Gigabits BaseT for LAN x 3

USB 3.2 Gen 1 x 1

Buttons

WPS Button

Reset Button

Power Switch

LED Indicator

Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 3 A current

Mounting

Wall Mount

Package Content

ExpertWiFi EBM68

RJ-45 cable

Power adapter

Warranty card

Quick start guide

Wall-mount kit

Product Weight (g) 808g

Product Dimentions 167x77x186 mm

Remark

Content and color may vary in different regions and packages.

AiMesh

AiMesh

• Primary AiMesh Router
• AiMesh Node

Device Access Control "Allow you to block access to unwanted websites and apps." ------------------------------------------------------

Web & Apps Filters

Time Scheduling

Reward

Safe Browsing

Customized Internet Schedule

• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12

Dashboard

Dashboard

Self-Defined Network "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." ------------------------------------------------------------------------

Self-Defined Network Type

• Employee
• Guest Portal
• Guest Network
• Scheduled Network
• IoT Network
• VPN Network
• Maximum Self-Defined Network Rule :16

VLAN

Captive Portal for Free WiFi

VPN WiFi

• WiFi Scheduling: One Time Access
• WiFi Scheduling: Weekly Schedule
• WiFi share: QR code, PDF file

Bandwidth Limiter

AP isolate

DNS Server Connection

Security

AiProtection

VPN

WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

Let's Encrypt

DNS-over-TLS

SSH

Firewall

• Maximum Firewall Keyword Filter :64
• Maximum Firewall Network Service Filter :32
• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

VPN Client L2PT

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

Traffic Control

Adaptive QoS

• Bandwidth Monitor
• Bandwidth Limiter

Traffic Monitor

• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Traffic Analyzer • Website History

WAN

Internet Connection Type

• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec

Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering

Port Forwarding

Port Triggering

DMZ

DDNS

NAT Passthrough

• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through

LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

VLAN

Wireless

UTF-8 SSID

WiFi MAC Address Filter • Maximum MAC Filters : 64

Wireless Scheduler

USB application 4G / 5G Auto Mobile Tethering

Media Server

Samba Server

FTP Server

Shared Folder Privileges

User Interface

• WEB: ASUSWRT
• APP: ASUS ExpertWiFi APP

Management

Multiple Site Management

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
