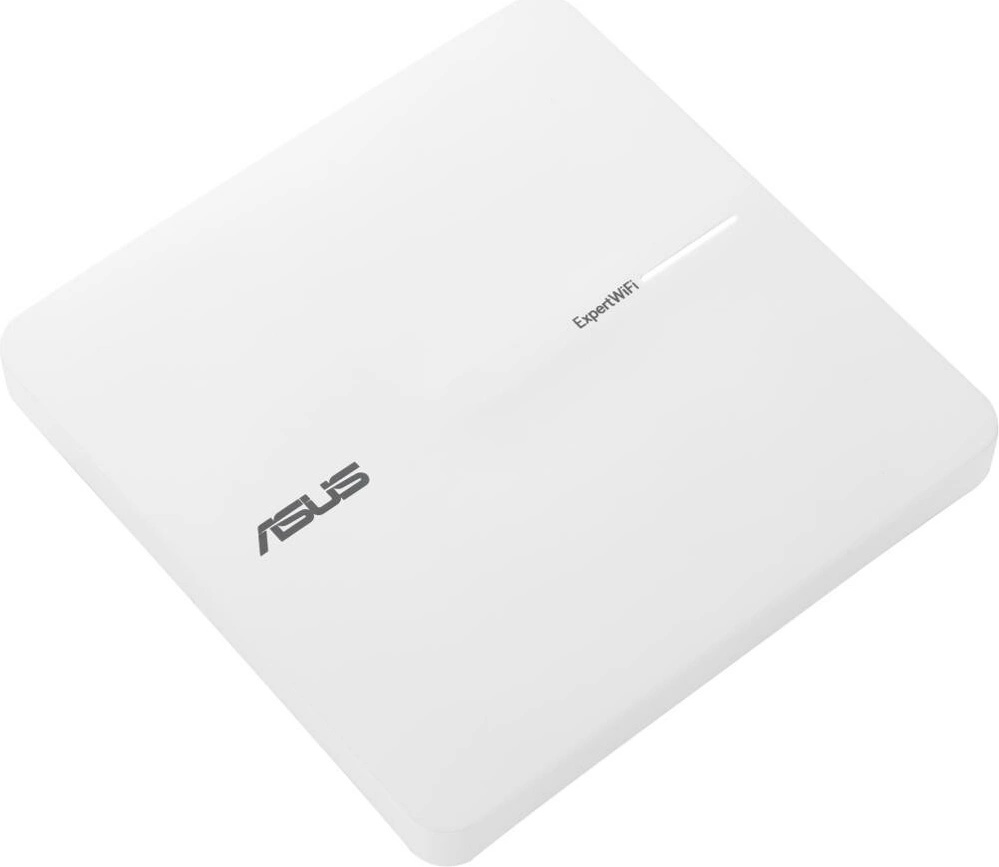

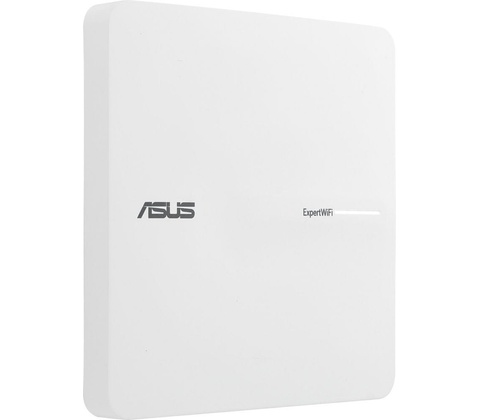

Asus EBA63

AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point, support up to 5 SSIDs and VLAN, Self-defined Network, support PoE & PoE+, easy management app, AiMesh compatible

Seamless and Extendable Connections — Enjoy uninterrupted roaming with WiFi 6 speeds of up to 3000 Mbps, support for up to 100 active devices and easy scalability to meet the evolving needs of your business network.

Secure and Segmented Networking – Easy WiFi network settings via Self-defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.

Flexible Deployment with PoE — Support for both Power over Ethernet (PoE) connection and AC adapters, providing versatile options for installation.

Accommodate to Any Space — Supports ceiling and wall mounting to fit into various business environments with more flexibility.

Built for Safety and Reliability — Compliant with IEC 60601-1-2 standards, and with the top half of the device made of materials that meet the UL94 5VB plastics flammability standard*, the EBA63 ensures a stable and reliable connection. *Only the top half of the EBA63 is constructed using UL94 5VB plastics flammability standard material.

ASUS ExpertWiFi EBA63 PoE Access Point

Your Business WiFi Expert Within Reach

The ASUS ExpertWiFi EBA63 is a Power over Ethernet (PoE) solution that provides fast, seamless and secure networking, with rich features tailored for small-to-midsized businesses. With its easy scalability, it can effortlessly adapt to your business network needs.

Secure and Efficient Business Operation with VLAN

The ExpertWiFi series supports virtual local area network (VLAN)* management for enhanced security of your business. VLAN management enables an easy, fast and flexible way to segment wired and wireless networks, with support for a dedicated Ethernet port to provide even more data protection. *The VLAN functionality of the EBA63 is subject to the capabilities of the router(s) it is connected to.

ASUS ExpertWiFi EBA63

Model Name

EBA63

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 1734 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

Internal antenna x 4

Transmit / Receive 2.4GHz 2x2 5GHz 2x2

Processor 1.7 GHz quad-core processor

Memory 256 MB Flash 512 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency 2.4 GHz 5 GHz

Operating Mode

AiMesh Node Mode

Access Point Mode

I/O Ports 10/100/1000 Gigabit Ethernet Port (support PoE) x 1

Buttons

Reset Button

LED Indicator

Power x 2

Power Supply 802.3af PoE 12 V with max. 1.5 A current DC (power adapter included)

Power Consumption

• US: 10.0W
• EU: 9.1W

Mounting

Wall Mount

Ceiling Mount

Package Content

ExpertWiFi EBA63

RJ-45 cable

Power adapter

Warranty card

Quick start guide

Wall-mount kit

Product Weight (g) 426g

Product Dimentions 160x160x42

AiMesh

AiMesh • AiMesh Node

Device Access Control

Time Scheduling

Reward

Customized Internet Schedule

• Maximum Device Access Control Profile :12
• Maximum Device Access Control Content Filter Rule :12

Dashboard

Dashboard

Self-Defined Network "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." ------------------------------------------------------------------------

Self-Defined Network Type

• Employee
• Guest Network
• Scheduled Network
• Maximum Self-Defined Network Rule :16

VLAN

• WiFi Scheduling: One Time Access
• WiFi Scheduling: Weekly Schedule
• WiFi share: QR code, PDF file

AP isolate

Security

WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

SSH

Traffic Control

• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Wireless

UTF-8 SSID

WiFi MAC Address Filter • Maximum MAC Filters : 64

Wireless Scheduler

User Interface

• WEB: ASUSWRT
• APP: ASUS ExpertWiFi APP

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
