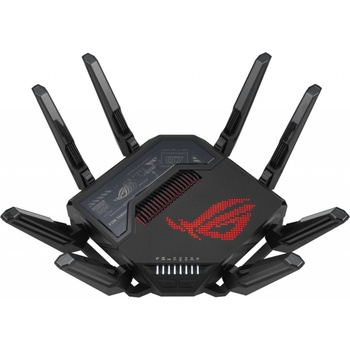

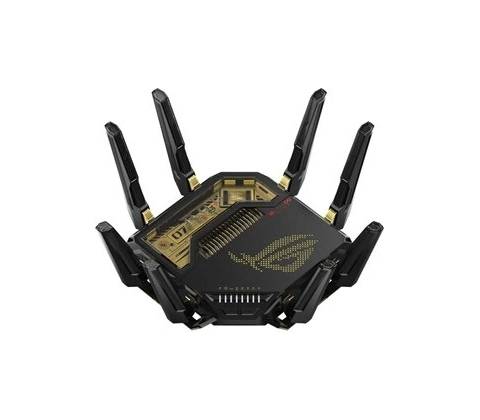

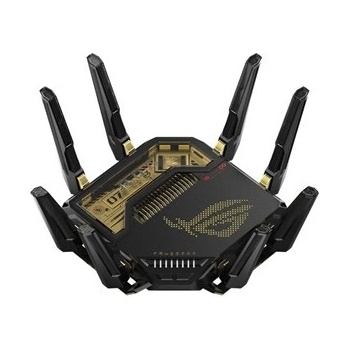

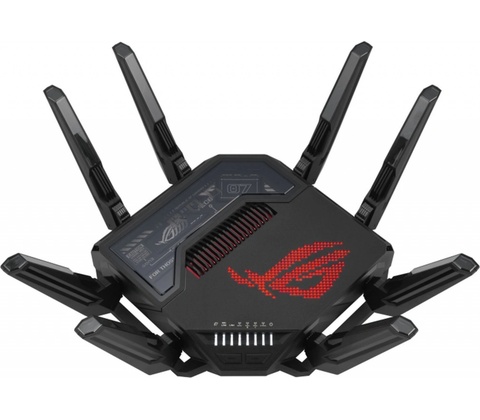

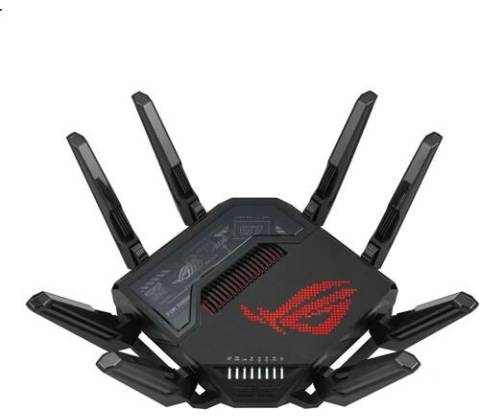

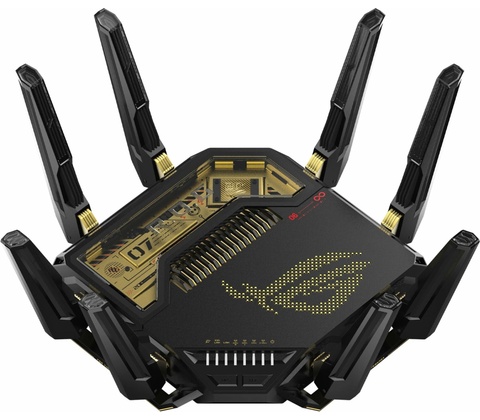

Asus GT-BE98

ROG Rapture GT-BE98

GT-BE98 Quad-band WiFi 7 (802.11be) Gaming Router, support new 320MHz bandwidth & 4096-QAM, dual 10G ports, backup WAN, Triple-level Game Acceleration, Mobile Game Mode, AURA RGB, AiMesh support, subscription-free network security and comprehensive VPN features

Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 Gbps

Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers

Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength

Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games

Subscription-free network security with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing

Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi

AiMesh extendable routers enable whole home seamless roaming with rich, advanced features

Model

ROG Rapture GT-BE98

Model Name

GT-BE98

Network Standard

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IPv4

IPv6

Product Segment

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps

WiFi Data Rate

• 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
• 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
• 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Antenna

External antenna x 8

Transmit / Receive 2.4GHz 4x4 5GHz-1 4x4 5GHz-2 4x4 6GHz 4x4

Processor 2.6GHz quad-core processor

Memory 256 MB Flash and 2 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth

Operating Frequency 2.4 GHz / 5 GHz / 6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports 1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0

Buttons

WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator

WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 6GHz x1 5GHz-1 x 1 5GHz-2 x 1 2.4GHz x1

Power x1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19.5 V with max. 3.33 A current

Package Content

GT-BE98 quad-band gaming router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card

Product Weight (g) 2000 g

Product Dimensions 350.41 x 350.41 x 220.6 mm

AiMesh

AiMesh

• Primary AiMesh Router
• AiMesh Node

Game

Game Boost / Acceleration

WTFast

ROG_First

OpenNAT (Game Profile)

Gaming Port

Parental Control "Allow you to block access to unwanted websites and apps."

Parental Control Customized Internet Schedule

• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64

Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network." • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security

WiFi Encryption : WPA/WPA2/WPA3 Personal

WPA/WPA2/WPA3 Enterprise

Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control

Adaptive QoS

• Bandwidth Monitor
• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP

Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering

Port Forwarding • Maximum Port Forwarding Rule : 64

Port Triggering • Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IPTV

LAN Link Aggregation

Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter • Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application 4G / 5G Auto Mobile Tethering

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface

Operating system : ASUSWRT

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
