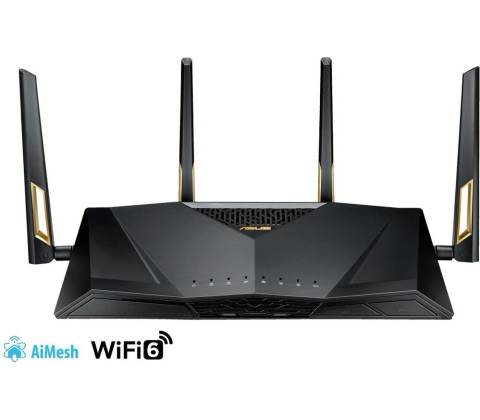

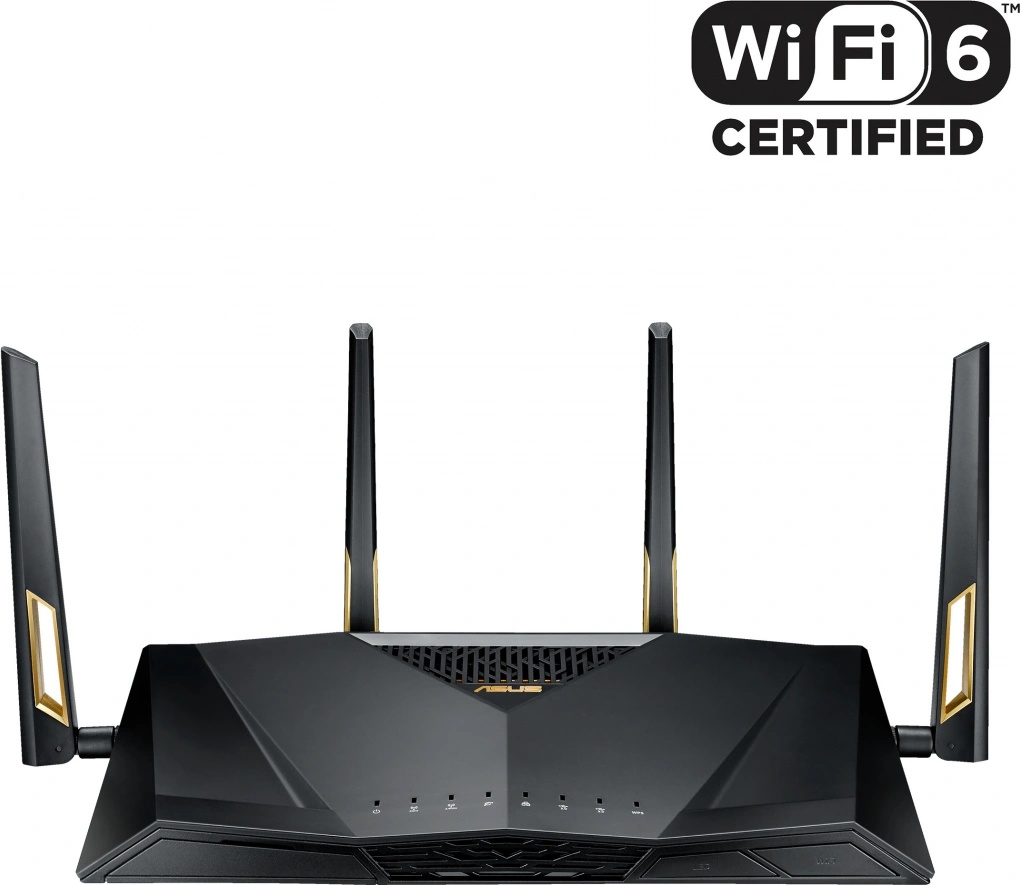

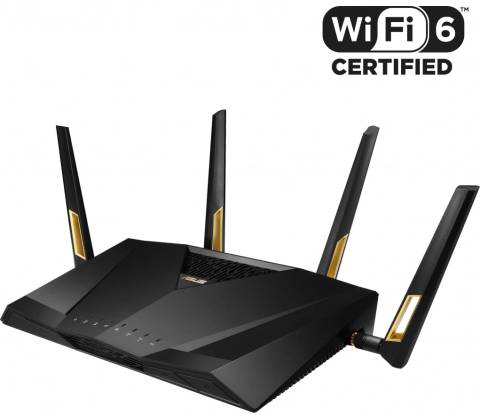

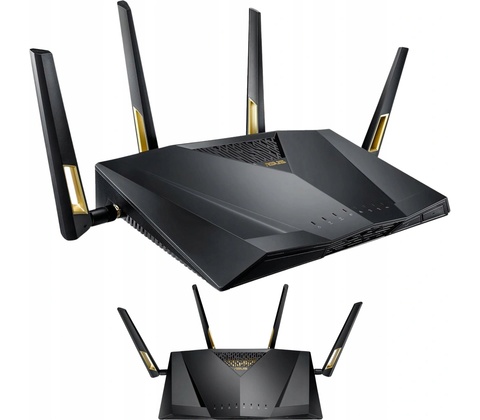

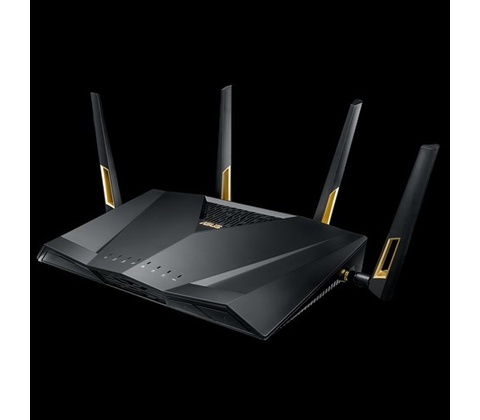

Asus RT-AX88U

AX6000 Dual Band 802.11ax WiFi Router supporting MU-MIMO and OFDMA technology, with AiProtection network security powered by Trend Micro, built-in WTFast game accelerator and Adaptive QoS

Next-Gen WiFi Standard - 802.11ax WiFi standard for better efficiency and throughput.

Ultrafast WiFi Speed - 6000Mbps WiFi speed to handle even the busiest network with ease.

Wider Usage and More Convenience - 4 antennas + 8 LAN ports to support more clients at the same time.

Commercial-grade Security - AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.

Better Partner with Mesh System - Compatible with ASUS AiMesh WiFi system for seamless whole-home coverage.

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6

Product Segment

AX6000 ultimate AX performance

Coverage

Very large homes

Data Rate

• 802.11ac (5GHz) : up to 4333 Mbps
• 802.11ax (2.4GHz) : up to 1148 Mbps
• 802.11ax (5GHz) : up to 4804 Mbps

Antenna

External antenna x 4

Transmit/Receive 2.4 GHz 4 x 4 5 GHz 4 x 4

Processor 1.8 GHz quad-core processor

Memory 256 MB Flash 1 GB RAM

Wi-Fi Technology

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency 2.4 GHz / 5 GHz

Encryption

WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control

• Firewall: SPI intrusion detection, DoS protection
• Access control:Parental control, Network service filter, URL filter, Port filter

Management

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

VPN Support

IPSec Pass-Through

PPTP Pass-Through

L2TP Pass-Through

PPTP server

OpenVPN server

PPTP client

L2TP client

OpenVPN client

WAN Connection Type

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities

Router setup wizard; Firmware restoration; Device discovary; printer setup utility

Ports

RJ45 for BaseT for WAN x 1, RJ45 for BaseT for LAN x 8

USB 3.1 Gen 1 x 2

Button

WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

Features

Link Aggregation - 802.3ad

MU-MIMO

Traffic Analyzer

Adaptive QoS

WTFast Gamers Private Network

AiProtection Pro

Parental Control

• Guest Network : 2.4 GHz x 3, 5 GHz x 3
• VPN server : PPTP Server, OpenVPN Server, IPSec server
• VPN client : PPTP client, L2TP client, OpenVPN client
• NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

Mac OS Backup

Enhanced media server (AiPlayer app compatible)

• Image : Jpeg
• Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
• Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov

AiCloud personal cloud service 3G/4G data sharing

Printer Server

• Multifunctional printer support (Windows only)
• LPR protocol support

Download Master

• Support bt, nzb, http, ed2k
• Support encryption, DHT, PEX and magnet link
• Upload and download bandwidth control
• Download scheduling

AiDisk file server - Samba and FTP server with account management

Dual WAN

IPTV support

Roaming Assist

LED Indicator

Power x 1

Wi-Fi x 2

WAN x 1

LAN x 1

USB x 2

WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 2.37 A current

OS Support

Windows® 10

Windows® 8

Windows® 7

Mac OS X 10.6

Mac OS X 10.7

Mac OS X 10.8

Dimensions 11.8 x 7.4 x 2.4 ~ " (Without Bezel)

Weight

Operation mode

Wireless router mode

Access point mode

Media bridge mode
