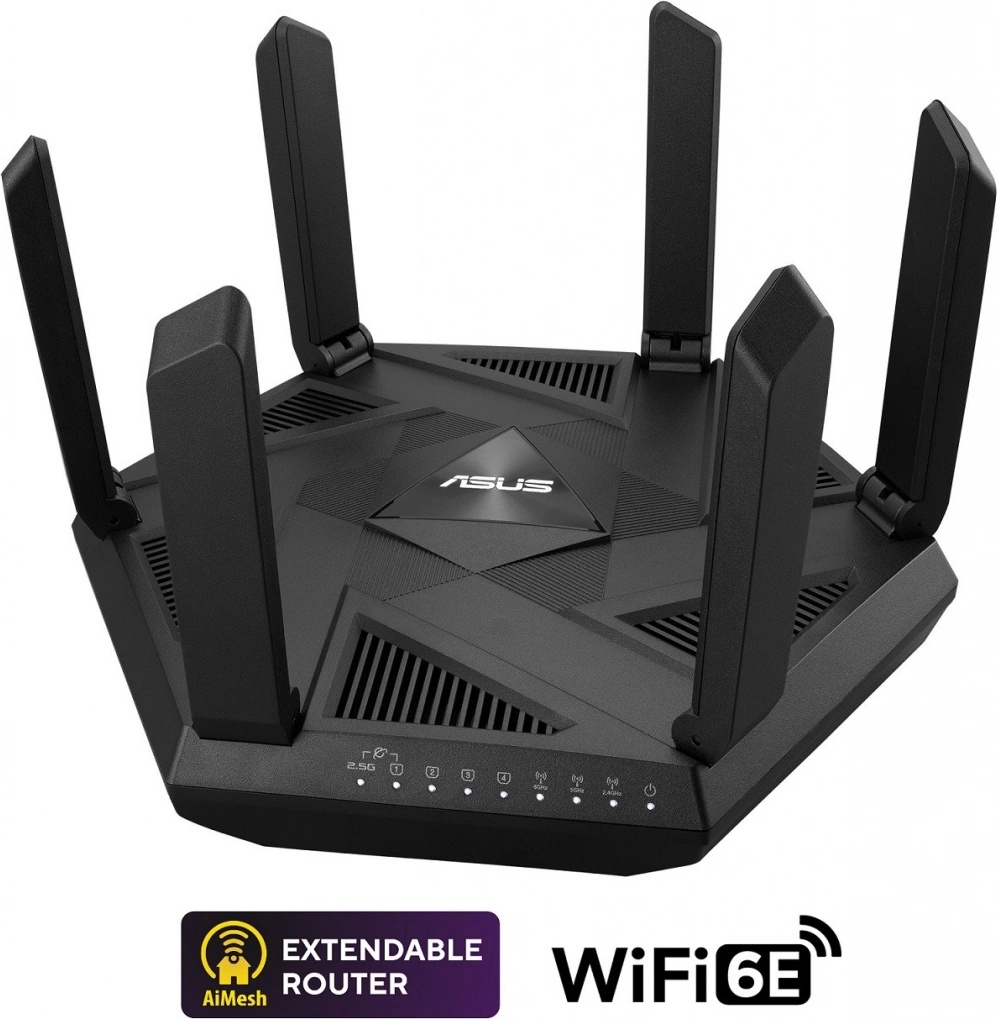

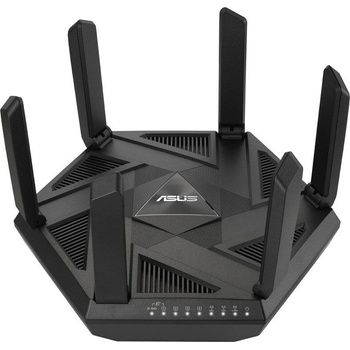

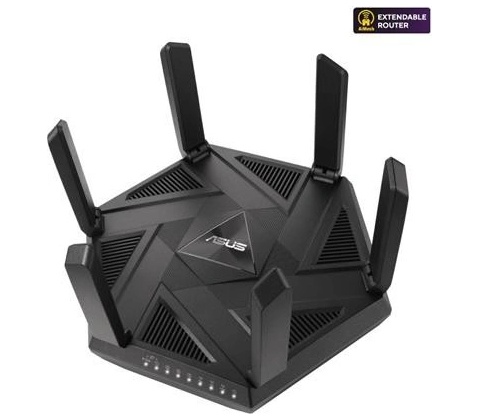

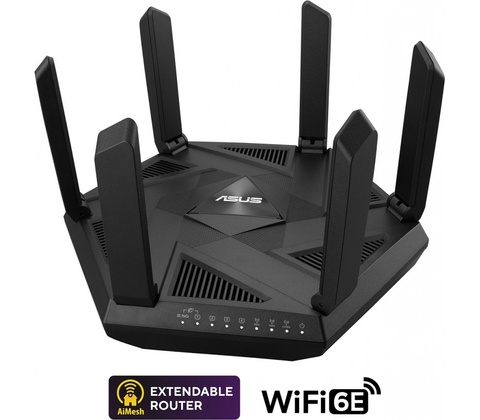

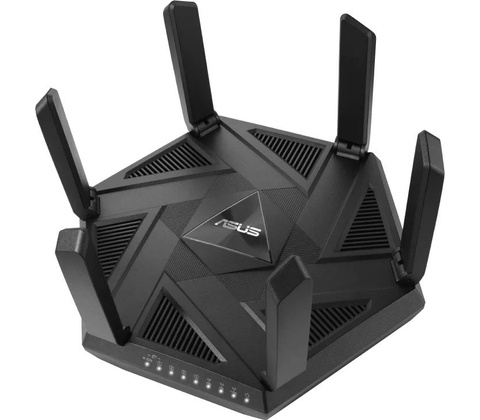

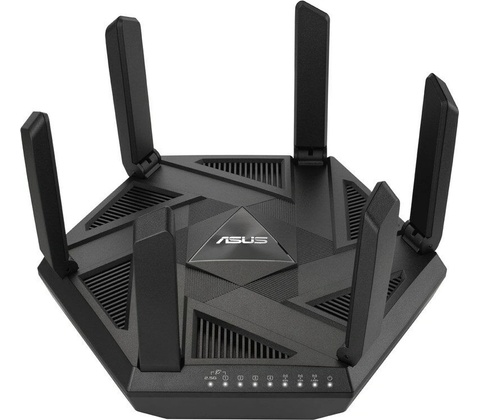

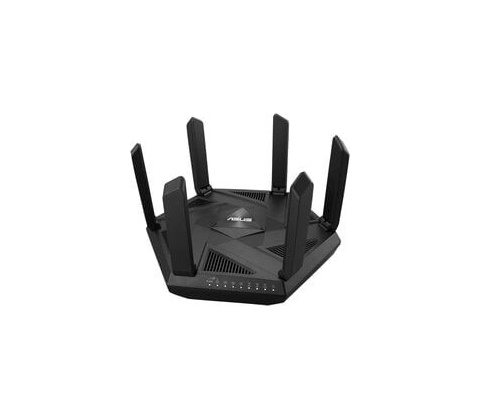

Asus RT-AXE7800

AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation

Ultra-fast WiFi 6E Technology – The whole-new 6 GHz band dramatically increases network capacity, delivering higher WiFi performance and more stable connectivity with speeds up to 7800 Mbps.

One-Tap Safe Browsing – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.

Enhanced Security Anywhere – Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.

Free Parental Controls – More flexible customizations to protect your kids online.

AiMesh Supported – Expand your wireless network with ASUS AiMesh-compatible routers and enjoy powerful, flexible and seamless whole-home WiFi.

Model

RT-AXE7800

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

IPv4

IPv6

Product Segment

AXE7800 ultimate AX performance : 574+4804+2402 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 500 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
• WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

Antenna

External antenna x 6 (non-detachable)

Transmit / Receive 2.4GHz 2x2 5GHz 4x4 6GHz 2x2

Processor 1.7GHz quad-core processor

Memory 256 MB Flash and 512 MB DDR4 RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency

Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports

RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,

RJ45 for Gigabits BaseT for WAN/LAN x 1,

RJ45 for Gigabits BaseT for LAN x 3,

USB 3.2 Gen 1 Port x 1,

Buttons

Power on/off switch

Reset Button

WPS Button

LED Indicator

Power x 1 2.4GHz x 1 5GHz x 1 6HGz x 1 2.5G WAN/LAN1 x 1 1G WAN/LAN1 x 1 1G LAN x 3

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output: 12 V with max. 3.0 A current

Package Content

RT-AXE7800 WiFi Router

RJ-45 Cable

Power Adapter

Quick Start Guide

Warranty Card

Product Weight (g) 1033g

Product Dimensions 243*223*155 mm

AiMesh

AiMesh

• Primary AiMesh Router
• AiMesh Node

Parental Control "Allow you to block access to unwanted websites and apps."

Safe Browsing

Customized Internet Schedule

• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Cilter Rule : 64

Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network." • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3

Guest Network Connection Time Limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security

AiProtection

WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control

Adaptive QoS

• Bandwidth Monitor
• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS -- Maximum Traditional QoS Rule : 32

Traffic Monitor

• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN

WAN Aggregation 3G / 4G LTE dongle

Port forwarding • Maximum Port Forwarding Rule : 64

Port triggering • Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay

LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64

Wake on LAN (WOL)

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter • Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

Administration

Configuration Backup and Restore

Diagnosis tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
