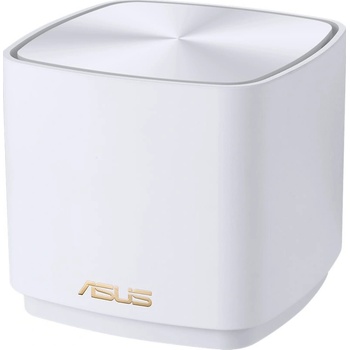

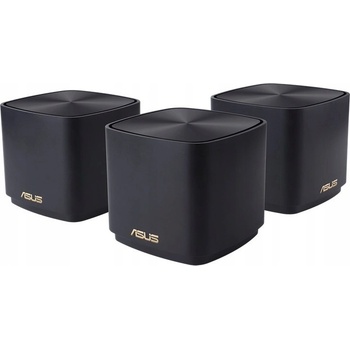

Asus Zenwifi XD4, 2ks

Model Name

XD4 (W-3-PK)

XD4 (W-2-PK)

XD4 (W-1-PK)

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6

Product Segment

AX1800 vynikající výkon v režimu AX: 1 201 Mb/s + 574 Mb/s

AX technology

Ano

Data Rate

• 802.11a: až 54 Mb/s
• 802.11b: až 11 Mb/s
• 802.11g: až 54 Mb/s
• 802.11n: až 400 Mb/s
• 802.11ac: až 1 733 Mb/s
• 802.11ax (2,4 GHz): až 1 300 Mb/s
• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

Internal dual-band antenna x 2

Transmit/Receive

Technologie MIMO 2,4 GHz 2 x 2 5 GHz 2 x 2

Memory 256 MB Flash, 256 MB RAM

Boosts speed

MIMO technology

Operating Frequency 2.4 G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Button

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

• "AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1.5 A current"

Package content ?Router (XD4R) ?Node (XD4N) ?RJ45 Ethernet cable ?Power adapter ?Quick start guide ?Warranty Card ?Router (XD4R) ?RJ45 Ethernet cable ?Power adapter ?Quick start guide ?Warranty Card

Product Weight (g) 295 g

Remark 3-pack router*1+node*2 2-pack router*1+node*1 1-pack router*1

Content may vary in different regions and packages.

AiMesh

• AiMesh : Ano
• Primary AiMesh router : Ano
• AiMesh node : Ano

Router APP

ASUS Router APP : Ano

Game

• Game Boost/acceleration : Ne
• WTFast : Ne

Alexa

Support Alexa skill : Ano

IFTTT

Support IFTTT : Yes

AiProtection

• AiProtection : AiProtection Classic
• Router Security Assessment : Ne
• Malicious site blocking : Ano
• Two-Way IPS : Ne
• Infected Device Prevention and Blocking : Ano

Parental Control

• Parental Control : Ano
• Parental Control Customized Internet schedule : Ano

Traffic Control

• Adaptive QoS : Ne
• Bandwidth Monitor : Ano
• Bandwidth limiter : Ano
• Traditional QoS : Yes
• Maximum Traditional QoS rule : 32
• Traffic Monitor : Ne
• Real-time traffic monitor : Ano
• Wired Traffic Monitor : Ano
• Wireless Traffic Monitor : Ano
• Traffic Analyzer : Ne
• Website history : Ne

Wireless

• IPv6 : Ano
• MU-MIMO : Ano
• Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
• UTF-8 SSID : Ano
• Guest Network : Ano
• Maximum Guest Network rule : 9
• Guest Network Connection time limit : Ano
• WPS : Ano
• Wi-Fi MAC address filter : Ne
• Wireless scheduler : Ne
• Airtime fairness : Ne
• RADIUS Server : Ne
• Universal beamforming : Ne
• Explicit beamforming : Ne

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN : Ne
• WAN Aggregation : Ne
• 3G/4G LTE dongle : Ne
• Android tethering : Ano
• Port forwarding : Ano
• Port triggering : Ano
• DMZ : Ano
• DDNS : Ano
• NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• Let's Encrypt : Ne

LAN

• DHCP Server : Ano
• IGMP snooping : Ano
• IPTV : Ano
• LAN Link Aggregation : Ne
• Manually assign IP address : Ano
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2PT : Ano
• VPN Client OVPN : Ano
• VPN Client PPTP : Ano
• VPN Server IPSec : Ano
• VPN Server OVPN : Ano
• VPN Server PPTP : Ano
• VPN Fusion : Ne

USB application

• HDD hibernation : Ne
• Safely Remove disk : Ne
• AiCloud : Ne
• Download master : Ne
• AiDisk : Ne
• Media Server : Ne
• Time Machine : Ne
• Samba Server : Ne
• FTP Server : Ne
• Shared Folder privileges : Ne

Administration

• Operating system : ASUSWRT
• Free OS upgrade : Ano
• Firewall : Ano
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL) : Ano
• SSH : Ano
• Configuration backup and restore : Ano
• Diagnosis tools : Ano
• Feedback system : Ano
• System log : Ano

Product Dimensions with antennas (L*W*H) mm 90 x 90 x 80 mm

Gift Box Dimension (L*W*H) mm

• 3PK : 369*199*131 mm
• 2PK : 260*195*127 mm
• 1PK : 235*155*130 mm

Gift Box Weight (kg)

• 3PK : 0.5
• 2PK : 0.48
• 1PK : 0.37

Carton Dimension (L*W*H) mm

• 3PK : 543*384*220 mm
• 2PK : 409*277*221 mm
• 1PK : 537*493*179 mm

Carton Gross Weight (kg) 1
