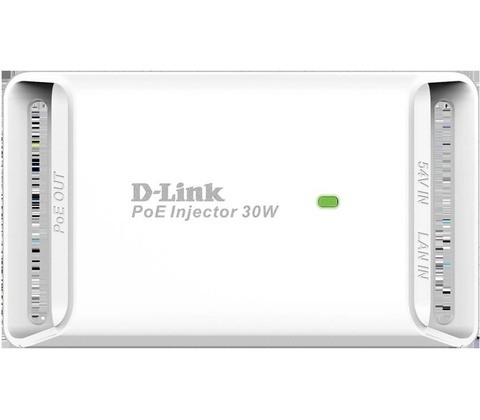

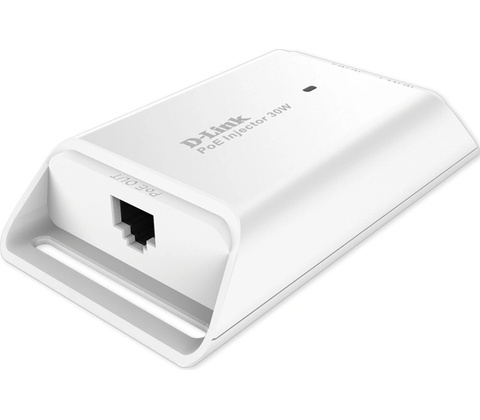

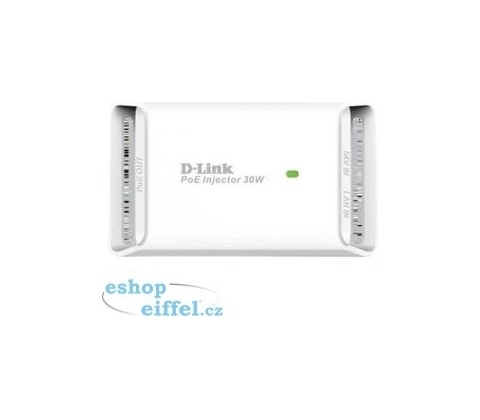

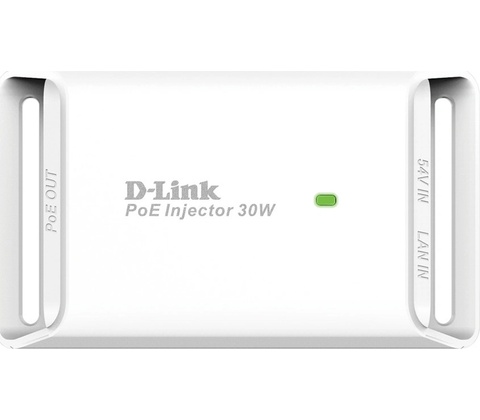

D-Link DPE-301GI

OVERVIEW

• The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.
• The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.
• D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.
• Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.

TECHNICAL SPECS

Ports

PoE + Data Port (out)

• Supports half/full-duplex operation
• 10/100/1000BASE-T port
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3at compliant
• IEEE 802.3af compliant
• IEEE 802.3ab compliant

Data Port (in)

• Supports half/full-duplex operation
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliant
• 10/100/1000BASE-T port

LED Indicators

• Blue: Power On
• Green: Link On

Physical

Dimensions (L x W x H) *109.8 x 62.2 x 24.5 mm

Weight *65 grams

Power

• Power Adapter: 55 V / 0.6 A
• Max Consumption: 32.4 watts
• Output: 0.6 A at 55 V

Temperature

• Operating: -10 to 50 °C
• Storage: -30 to 70 °C

Humidity

• Operating: 5% to 95% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• CE
• FCC
• VCCI
• RCM
• RoHS
• BSMI
