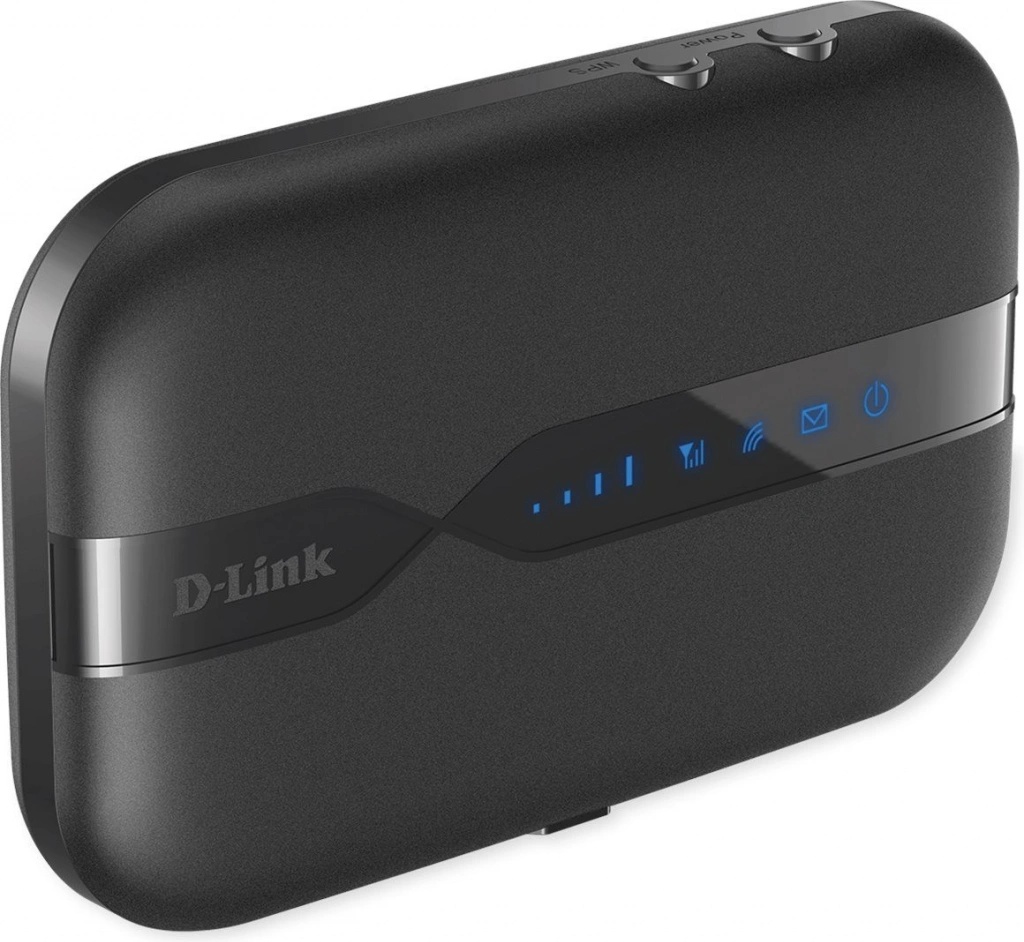

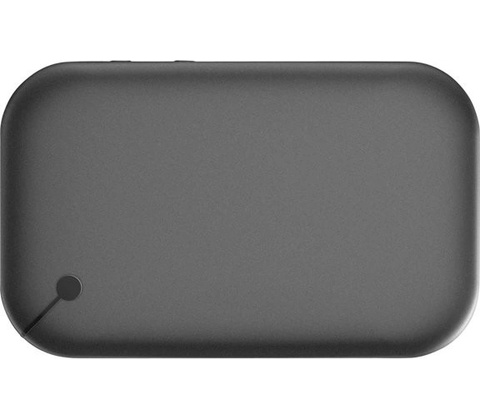

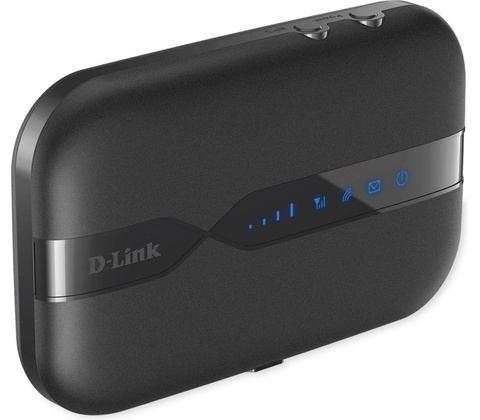

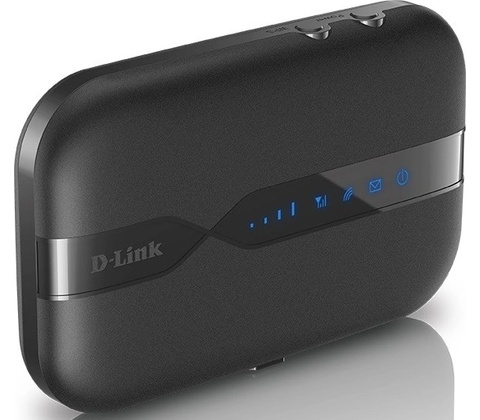

D-Link DWR-932

Share With Others

The portable size and battery powered enabled you to share your connection anywhere. Share a single mobile Internet connection with your friends or colleagues to send and receive e-mail, surf the Internet or make VoIP calls, on multiple devices, all at the same time.

Product Highlights

Connect

Connect your high-speed mobile broadband connection to multiple Wi-Fi devices such as smartphones, tablets and notebook computers

Protect

A built-in firewall protects against attacks over the Internet, and industry-standard WPA/WPA2 security prevents unauthorised access to your network

Size

Small enough to fit in your pocket with high-capacity rechargeable battery, lets you work and play for longer on the go

Connect Anywhere

Simply insert your data-enabled SIM card and share you Internet to let your family and friends stay connected. Ideal for business trips to share an Internet connection during a meeting or while travelling, allowing you to provide all your travel companions Internet access whether, they’re using laptop or a mobile device.

Flexible Usage

The DWR-932 4G LTE Mobile Wi-Fi Hotspot 150 Mbps gives you instant connectivity in a powerful yet portable device that fits easily into your pocket, wherever you go. Wi-Fi Protected Setup (WPS) lets you create a secure Wi-Fi network with just the touch of a button. The rechargeable 2020 mAh Li-on battery allows you to stay connected for longer periods of time and it’s plug-and-play with no complicated software to install. Getting online with the DWR-932 Mobile Wi-Fi Hotspot 150 Mbps is quick, easy and convenient.

Connectivity

• Uses a SIM card to connect to the 4G LTE mobile Internet
• Compatible with 802.11n/g/b devices
• Dual-purpose micro-USB port for easy charging and 4G LTE modem mode

Portability

• Up to 4 hours of battery life in one charge so you stay connected for longer
• Portable design is small enough to fit in your pockets to take with you wherever you go

Security

• WPA/WPA2 Wi-Fi security protocols provide the latest in wireless security
• Built-in firewall blocks unauthorised connections
• Wi-Fi Protected Setup (WPS) for one-touch secure setup with other devices

Compatibility •4G LTE modem mode works with MacOS, Windows or Linux-based computers4

Technical Specifications

General

Frequency Support1

• GSM/GPRS/EDGE: 850/900/1800/1900 MHz
• UMTS/HSDPA/HSUPA: 2100/900 MHz FDD-LTE: Band 1, 3, 7, 8, 20 or TDD-LTE: Band 38
• LTE output power class: 23 dBm (class 3)

Data Throughput2

• Downlink up to 150 Mbps
• Uplink up to 50 Mbps

Security

• WPA/WPA2 PSK Auto (TKIP/AES)
• WPS Push-Button Connection

Advanced Functions

• Built-in firewall
• Built-in NAT
• UPnP

Physical

Interfaces

• 802.11n/g/b wireless LAN
• 6-pin USIM card interface
• Micro-USB port

Antenna

• DL MIMO (2x2)
• 1 x internal Wi-Fi antenna

Display

• Network type
• Signal strength
• Roaming status
• SMS & SMS status
• Internet connection status
• Carrier
• Battery status
• Wi-Fi & security status
• Wi-Fi clients

Power

• DC 5 V/1 A ± 5%
• 2020 mAh Li-ion battery

Dimensions •73 x 73 x 15 mm (2.87 x 2.87 x .59 in)

Weight •77 g (.15 lb)

Operating Temperature •0 to 40 °C (32 to 104 °F)

Storage Temperature •-20 to 70 °C (-4 to 158 °F)

Operating Humidity •10% to 90% (non-condensing)

Certifications

• CE
• RoHS
