HP MSR930

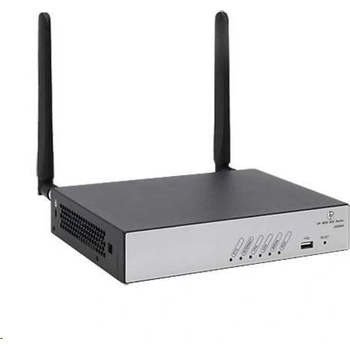

HP MSR930 3G Router (JG513A)

Ports 1 RJ-45 autosensing 10/100/1000 WAN port 4 RJ-45 autosensing 10/100/1000 LAN ports

Physical characteristics

Dimensions 9.06(w) x 6.3(d) x 1.72(h) in (23 x 16 x 4.36 cm)

Weight 3.97 lb (1.8 kg)

Memory and processor

Processor

RISC @ 533 MHz, 256 MB DDR SDRAM, 128 MB flash

Performance

Throughput up to 300 Kpps (64-byte packets)

Routing table size 10000 entries (IPv4), 5000 entries (IPv6)

Environment

Operating temperature 32°F to 104°F (0°C to 40°C)

Operating relative humidity 5% to 90%, noncondensing

Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity 5% to 90%, noncondensing

Shock and vibration

Anti-Seismic ETS 300 019-2-3 HALT: 0~40Grms

Altitude up to 6,561 ft (2 km)

Electrical characteristics

Maximum heat dissipation 20 BTU/hr (21.1 kJ/hr)

DC Voltage 12 VDC

Maximum power rating 24 W

Configuration Notes

Country-specific AC power adaptor included

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

UL 60950-1; CAN/CSA 22.2 No. 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J

Emissions

ANSI C63.4; EN 55022 Class B; ICES-003 Class B; ETSI EN 300 386 V1.3.3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001; AS/NZS CISPR 22 Class B; FCC (CFR 47, Part 15) Class B

Telecom

FCC part 68

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB

Notes

Supports HSPA+

SIM card included

• Default antennas: 1
• Maximum antennas: 2

Optional antenna cable also available for remote location 3G firmware changes through CLI

For regional carrier certifications please contact your local HP sales representative
