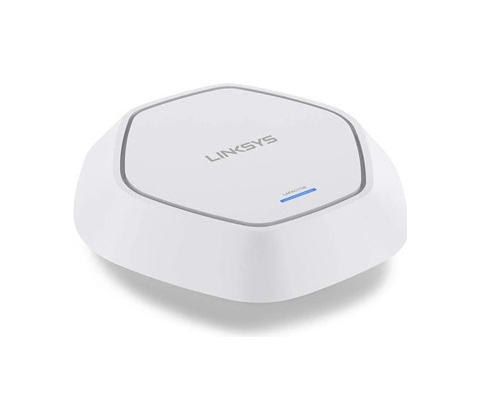

Linksys LAPAC1750C-EU

Linksys Business LAPAC1750C AC1750 Dual-Band Cloud Wireless Access Point

Delivers 802.11ac WiFi technology to provide data rates up to AC1750 Mbps* and includes Linksys Cloud Manager for remote management. Learn More

Dual-Band AC1750 Speed*

Multi-Site Centralized Management Platform

Remote Management -amp; Zero-Touch Provisioning

WPA2 Pre-shared Key, WPA2 Enterprise, Captive Portal

Smart Phone/Tablet Web App Support

Real-Time Statistics

Band Steering

REMOTELY MANAGE YOUR ACCESS POINTS THROUGH THE CLOUD

The Linksys Business LAPAC1750C Dual-Band Cloud Wireless Access Point lets you easily control your network anytime, and from anywhere, using Cloud Manager. With the cloud license included, Cloud Manager offers a centralized management solution that is truly affordable.** This browser-based cloud management system takes the hassle out of managing multiple access points, sites, and customers. The simple interface displays real-time status of all your networks as well as helpful statistics on each access point.

FEATURES

• Remote Access: Monitor your networks from anywhere at any time
• Network Insight: View real-time statistics on network activity and health
• Centralized Management: Manage multiple sites from a centralized platform
• Extensive Scalability: Scale your networks by adding thousands of access points and devices
• Zero-Touch Provisioning: Access points automatically connect and configure when activated, allowing for rapid deployment
• Global Map View: Worldwide view of accounts and their networks, sites, devices, and clients + alerts within the map
• Search Box: Easily search for Networks or Access Points by name.

BENEFITS

• Easy to Use: Simple and responsive web-based interface with no software to download or costly training needed
• Network-as-a-Service: Ideal for services managing multiple accounts and networks
• Cost Efficiency: Reduce cost of on-site management using the cloud
• Cloud License: 5 years included at no additional cost**
• Easy Deployment: Zero-touch provisioning allows for faster deployment of Linksys access points without having to be on-site

CENTRALIZED MANAGEMENT

The LAPAC1750C Access Point allows centralized management via Cloud Manager to reduce the cost and complexity of managing multiple wireless access points. By enabling you to establish and manage all of your access points from an easy to use dashboard and a single pane of glass, this feature greatly streamlines administration and can save hours of technical labor.

By providing alerts and real-time statistics, Cloud Manager helps network administrators anticipate potential network issues without the need for on-site monitoring and troubleshooting. You can also use Cloud Manager to configure multiple access points simultaneously and centralize management of network security policies.

AC WIFI CONNECTIVITY DELIVERS ROBUST WIRELESS PERFORMANCE

The LAPAC1750C Access Point leverages the latest Wireless-AC technology to ensure faster WiFi speeds and increased productivity for your entire office. The wireless access point features dual wireless bands (2.4 GHz and 5 GHz) and delivers combined speeds of up to 1.75 Gbps* to support high-bandwidth activities such as video conferencing and cloud storage syncing.

CAPTIVE PORTAL FOR SECURE GUEST ACCESS

Control and customize guest WiFi access with captive portal. The portal routes users to a special web page for authentication before they are allowed to access the Internet. Ideal for cafés, lobbies, and other WiFi hotspots, this feature helps protect both your guests and your business from unwanted access.

POE+ FOR STREAMLINED INSTALLATION

Thanks to its PoE+ (Power over Ethernet Plus) capabilities, the LAPAC1750C Wireless Access Point can draw both power and data from a single Ethernet cable. There is no need for a separate power adapter or nearby electrical outlet: simply connect the LAPAC1750C to a PoE+-enabled switch or PoE injector, and the access point can function using just one Ethernet cable.

ADVANCED WIRELESS SECURITY PROTECTS YOUR DATA

To ensure that your company-#39;s data is secure, the LAPAC1750C Wireless-AC Access Point is equipped with an array of business-class security features. The wireless access point gives your business full control over access rights with WPA2 Pre-shared Key, WPA2 Enterprise and Captive Portal Authentication. Rogue AP Detection helps administrators identify authorized access points across the network, while MAC address filtering provides an additional layer of protection.

Key Features:

Multiple SSIDs (8)

VLAN Support

Number of VLANs (8)

SSID to VLAN Mapping

Dynamic Channel Selection

Captive Portal with Splash Page

WPA2 PSK, WPA2 Enterprise

WPA, WPA2

Client Blocking per SSID (20 Clients per SSID)

Rogue AP Detection

Wireless Client Isolation

Bandwidth Limit per SSID

Band Steering

Real-time Bandwidth Statistics

Management Interface

Event Notification

Network Diagnostics

Network Standards:

IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3, 802.3u, and 802.3at

Power over Ethernet Plus (PoE+) IEEE 802.3at

Radio Frequency Bands: 2.4GHz and 5GHz (Concurrent)

Ports: 1 x Gigabit LAN Port with IEEE 802.3at PoE+ 1 x 12V/1.5A power port

LEDs: 1 x System LED

Buttons:

Reset Button

MIMO: 3x3

Antenna Type:

Internal PCBA Antenna

Antenna Gain: 1.7dBi @2.4G, 1.9dBi @5G

RF Transmit Power:

High Power PA

Radio Frequency Channels:

• 2.412 to 2.472 GHz: 13 channels
• 5.180 to 5.240 GHz: 4 channels

Receive Sensitivity:

• 2.4GHz = 802.11b @ 11Mbps: -85dBm, 802.11g @54Mbps: -73dBm, 802.11n 20MHz @MCS7: -67dBm, 802.11n 40MHz @MCS7: -65dBm
• 5GHz = 802.11a @54Mps: -73dBm, 802.11n 20MHz @MCS7: -70dBm, 80211n 40MHz @MCS7: -68dBm, 802.11ac 20MHz @MCS8: -66dBm, 80211ac 40MHz @MCS9: -61dBm, 802.11ac 80MHz @MCS9: -58dBm

Maximum Power Consumption: 15W

Dimensions (LxWxH): 9.57 x 9.33 x 1.72 inches

Weight: 1.12lb

Operating Temperature: 0° to 40°C (32° to 104°F)

Storage Temperature: -20° to 70°C (-4° to 158°F)

Operating Humidity: 10% to 85% non-condensing

Storage Humidity: 10% to 90% non-condensing

Mounting:

Ceiling

Wall

Security Features:

Multiple SSIDs (8)

SSID Broadcast

SSID to VLAN Mapping (8)

Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise

Wireless Client Isolation

Client Blocking per SSID (20 per SSID)

Rogue AP Detection

Security Lock:

Kensington Security Lock

Quality Of Service:

WMM

Bandwidth Management per SSID

Regulatory Compliance:

FCC, CE

Advanced Features:

Dynamic Channel Selection

Band Steering

Dual Image Support

Captive Portal with Splash Page

Event Notification:

Remote Syslog, and Email Alert

Centralized Management System:

Cloud (via Web Browser)

PACKAGE CONTENTS

One Access Point

Quick Start Guide

Ethernet Cable

AC Power Adapter

CD with Documentation

Mounting Bracket

Mounting Kit Screws

Ceiling Mount Back plate
