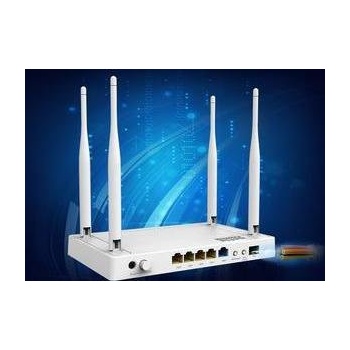

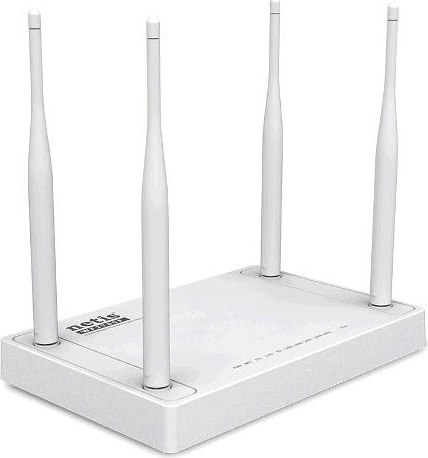

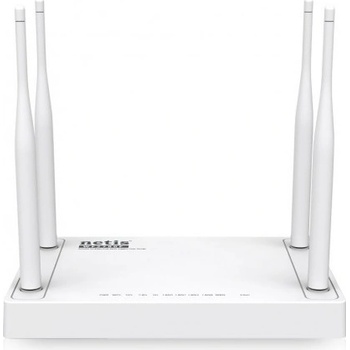

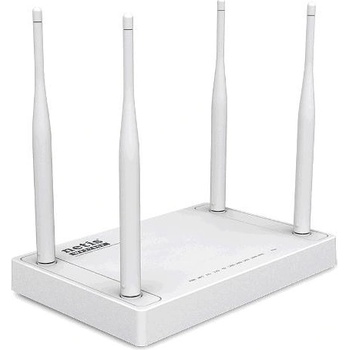

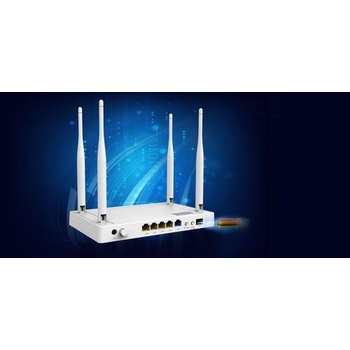

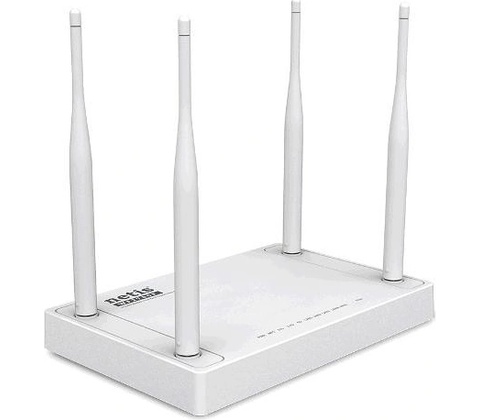

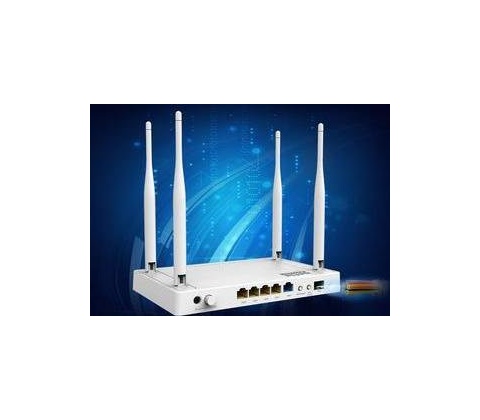

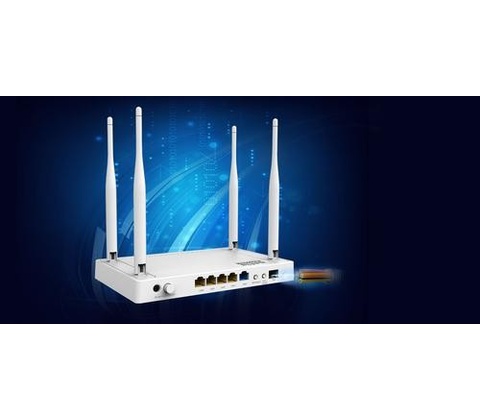

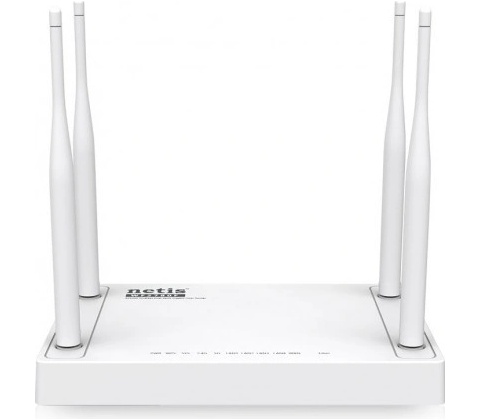

Netis WF2780F

WIRELESS

Standard • IEEE802.11n/g/b; IEEE802.11ac/a; IEEE802.3/3u/ab

Signal Rate

• 2.4GHz Up to 300Mbps
• 5 GHz UP to 867Mbps

Frequency Range • 2.4-2.4835GHz; 5.180-5.825GHZ

Transmit Power • 20dBm(MAX)

Data Transfer Rate • 802.11ac: 80MHz (433Mbps) 160MHZ(867Mbps) • 802.11n: 40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) • 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) • 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Mode • AP, WDS, AP+WDS, Repeater, Client, Multiple AP

Wireless Security

• 64/128-bit WEP,
• WPA-PSK/WPA2-PSK (TKIP/AES),WPA/WPA2
• SSID Broadcast Enable/Disable
• Wireless MAC Filtering

HARDWARE

Standards • IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 1000Base-TX

Interface

• 1* 10/100/1000M Auto MDI/MDIX RJ45 WAN port
• 4* 10/100/1000M Auto MDI/MDIX RJ45 LAN port
• 1* 10/100/1000M Fiber port

LED Indicators • PWR, WPS, SYS, 2.4G, 5G, LAN1 ~4, WAN, Fiber

Buttons • WPS/Default, Power ON/OFF, Wi-Fi ON/OFF

Antenna • 4 * external 5dBi antenna, omni-directional antennas

Power Supply • DC 12V/1A(Output)

Dimensions (L x W x H ) • 210 mm ×135mm ×31mm

SOFTWARE

WAN Type • PPPoE, Static IP, DHCP(Dynamic IP), Bridged, DS-Lite, 6rd

Port Forwarding • Virtual Servers, Port Triggering, UPnP, DMZ

Remote Access • Telnet, TFTP, HTTP, HTTPs, SNMP, SSH, PING, TR069

Access Control • IP/MAC/URL & Domain filtering

VPN Pass-through • PPTP, L2TP

Advanced

• SNMP, IPv6, RIP, DLNA, TR069, IPTV, IGMP Snooping,
• MLD Proxy & Snooping, DDNS, QOS, DOS, DHCP Relay

OTHERS

Certification • FCC, CE

Environment

• Operating Temperature: 0°C~40°C
• Storage Temperature: - 40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package

Contents

• 1 * WF2780F
• 1 * Quick Install Guide
• 1 * Power Adapter
• 1 * Gigabit Cable
