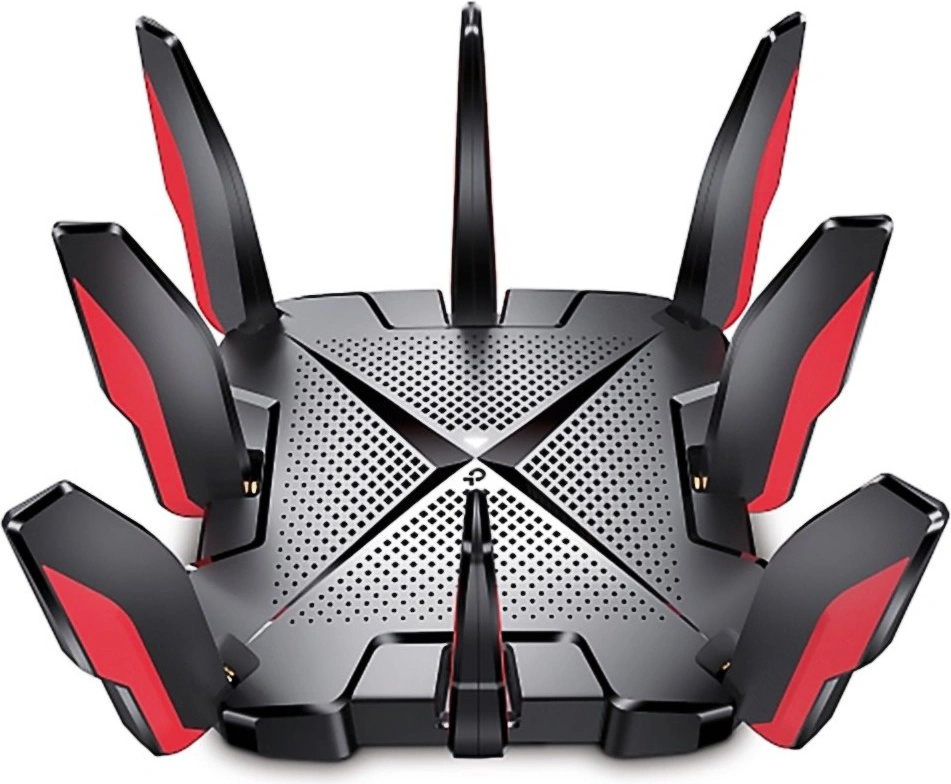

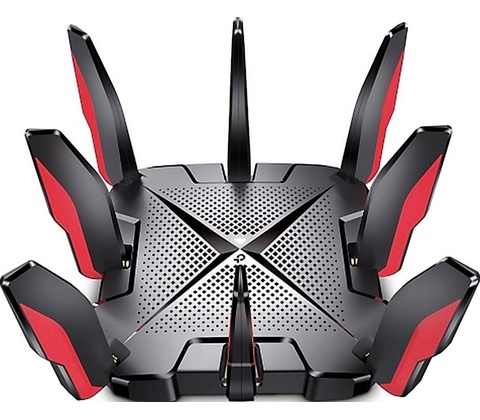

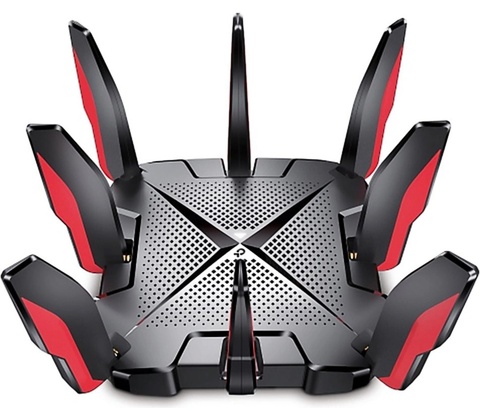

TP-LINK ARCHER GX90

TP-Link Archer GX90

Třípásmový herní Wi-Fi 6 router AX6600

• Herní pásmo – třípásmové provedení poskytuje 4,8Gbit/s herní pásmo vyhrazené pro vaše herní servery a umožňuje ničím nerušené hraní.
• Herní akcelerátor – detekuje a optimalizuje herní streamy, abyste mohli zůstat ponoření v herním světě.
• Herní statistiky – latence v reálném čase, doba hraní a vyhrazené síťové prostředky přehledně ve vyladěném uživatelském rozhraní.
• Herní ochrana – chraňte své účty a dokumenty se systémem zabezpečení Homecare™.
• Široké pokrytí – 8 antén, technologie Beamforming, výkonný modul FEM a 4T4R zajišťují pokrytí Wi-Fi signálem až pro 5pokojové domácnosti.
• Kabelové připojení 2,5 Gbit/s – odhalte potenciál sítě s šířkou pásma příští generace díky portu 2,5 Gbit/s WAN/LAN.
• Výkonný procesor – 1,5GHz čtyřjádrový procesor je zárukou, že síť vždy poběží na plný výkon.
• Snadné nastavení – s propracovanou aplikací Tether je nastavení otázkou několika málo minut.

Stránky produktu: https://www.tp-link.com/cz/home-networking/wifi-router/archer-gx90/

Technické specifikace

WIRELESS

Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX6600

• 5 GHz: 4804 Mbps (802.11ax, HE160)
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 4 Bedroom Houses 8× Detachable High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage 4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity

Very High

Tri-Band

Allocate devices to different bands for optimal performance 4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion 8 Streams

Connect your devices to more bandwidth

Working Modes

Router Mode

Access Point Mode

HARDWARE

Processor 1.5 GHz Quad-Core CPU

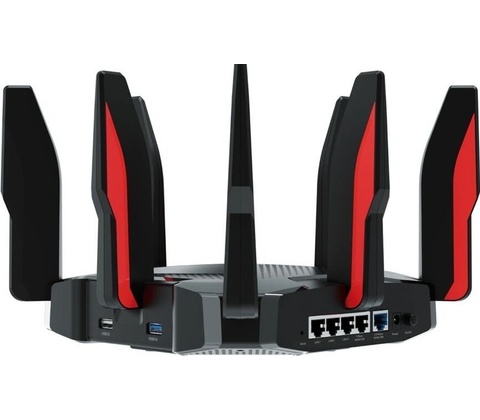

Ethernet Ports 1× 2.5 Gbps WAN/LAN Port 1× Gigabit WAN/LAN Port 3× Gigabit LAN Ports

USB Support 1× USB 3.0 Port 1× USB 2.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons

Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V = 5 A

SECURITY

WiFi Encryption

WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network 2× 5 GHz Guest Network 1× 2.4 GHz Guest Network

VPN Server

OpenVPN

PPTP

SOFTWARE

Protocols

IPv4

IPv6

Game Center

Game Accelerator

Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics

Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector

Keep your accounts and system safe with HomeCare™ antivirus protection

Service Kits

HomeCare™

Learn More>

OneMesh™

OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls

HomeCare™ Parental Controls

Custom Profiles

Content Filtering

App Block

URL Filtering

Time Limit

Time Schedule (Bedtime)

Log Insight

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

Game Accelerator QoS.

QoS by Device

HomeCare™ QoS

QoS by Application

Cloud Service

Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

NO-IP

DynDNS

Management

Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 8.3 × 8.3 × 2.0 in (212 × 212 × 51.8 mm)

Package Contents

Wi-Fi Router Archer GX90

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

• Operating Temperature: 0°C~40°C (32°F ~104°F)
• Storage Temperature: -40°C~70°C (-40°F ~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:
