TP-Link BE9300

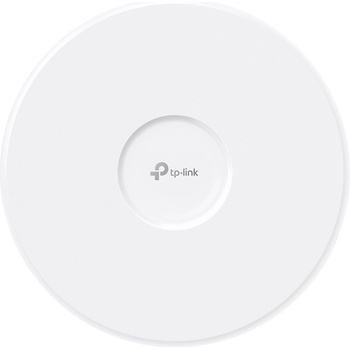

EAP772

Tripásmový prístupový bod s Wi-Fi 7 BE9300 pre montáž na strop

BE9300 Tri-Band Wi-Fi 7 (5760 Mb/s na 6 GHz + 2880 Mb/s na 5 GHz + 574 Mb/s na 2,4 GHz).†

Čisté pásmo 6 GHz prináša čistejšie a širšie zdroje.‡ 1× 2,5G port uvoľňuje plný potenciál Wi-Fi 7.

Šírka pásma 320 MHz umožňuje oveľa viac súčasných prenosov.‡

Prevádzka s viac linkami a viac jednotkami zabezpečuje vysoký výkon vašej siete.‡

Pokročilé funkcie: Centralizovaná správa, mesh a AI roaming.

HARDWARE FEATURES

Interface 1× 2.5G Ethernet Port

Button Reset

Power Supply 802.3at PoE or 12V/2.5A DC

Power Consumption • 24.05 W (For PoE); • 20.92 W (For DC)

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi
• 6 GHz: 2× 5.0 dBi

Bluetooth 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.

Mounting Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Wireless Client Capacity 380+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be

Frequency 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

Wireless Functions • MLO‡

• 4K-QAM‡
• Seamless Roaming(802.11k/v/r)
• MU-MIMO‡
• EHT320‡
• Mesh?
• BSS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

Wireless Security • Captive Portal Authentication?

• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS, IC

Package Contents • EAP772

• Installation Guide
• Ceiling/Wall Mounting Kit

• Note: Power Adapter is NOT included.
• Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
