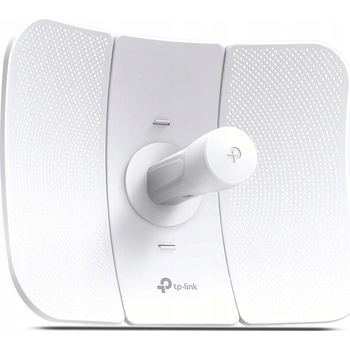

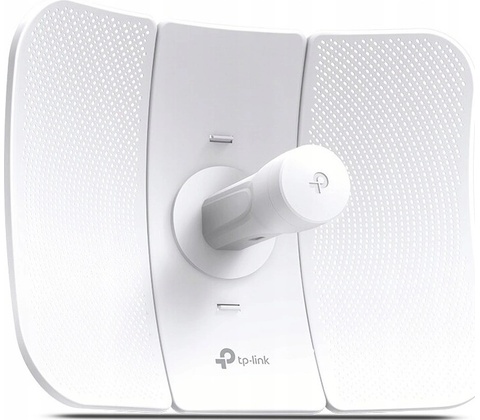

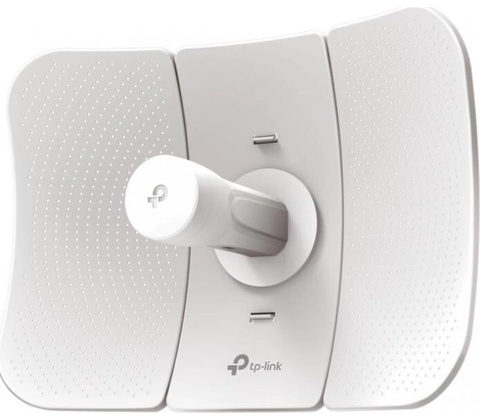

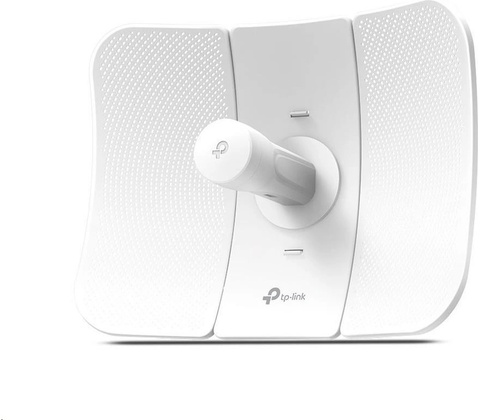

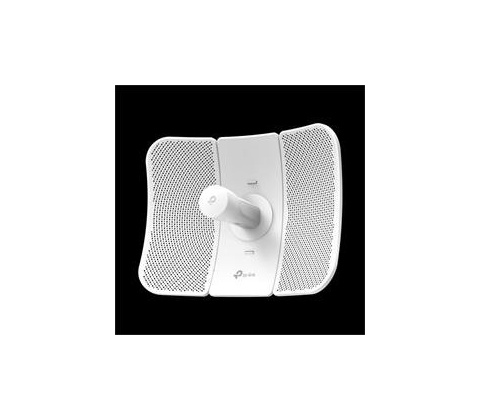

TP-Link CPE710

• 802.11ac až 867Mb/s pri 5GHz bezdrátové datové rychlosti
• 23dBi vysoce ziskový smerový 2 × 2 MIMO, ideální pro aplikaci na velké vzdálenosti
• Vynikající smerovost paprsku, vylepšená latence a potlacení šumu

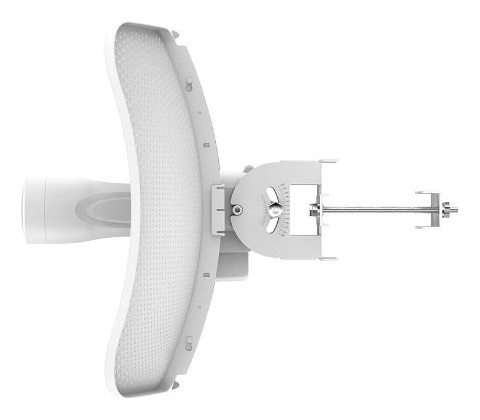

• Inovativní díly se zámkem zajištují rychlou montáž a robustní konstrukcní rešení, které udržuje CPE710 stabilní i za silného vetru
• Bytelné krytí IP65 odolné vuci povetrnostním vlivum spolu s 15kV ESD a 6kV ochranou pred bleskem zajištuje vhodnost do každého pocasí
• Pharos Control poskytuje správcum bezplatný centralizovaný systém správy
• Pasivní podpora PoE umožnuje flexibilní nasazení a pohodlnou instalaci

HARDWARE FEATURES

Processor

Qualcomm 750MHz CPU, MIPS 74Kc

Memory 128 MB DDR2 RAM, 16 MB Flash

Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button

Power Supply

Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27V DC

Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain 23 dBi

Antenna Beamwidth 9° (Azimuth)/7° (Elevation)

Protection 15 KV ESD Protection 6 KV Lightning Protection

Enclosure

• Material: Outdoor PC stabilized plastic
• Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac

Wireless Speeds

Up to 867 Mbps (80 MHz, Dynamic)

Up to 400 Mbps (40 MHz, Dynamic)

Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency 5.15~5.85 GHz

Transmit Power

Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

Network Configuration

• WAN: Static/ Dynamic/ PPPoE
• LAN: Static/ Dynamic/ DHCP
• Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
• Security: SPI Firewall/ Ping Forbidden/ DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding

Wireless Configurations

Selectable Channel Width: 20/40/80MHz

Auto Channel Selection

Transmit Power Control

Dynamic Frequency Selection(DFS)

WDS Enable/ Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

SSID Broadcast Enable/ Disable

Multi-SSID with VLAN Tagging(AP Mode only)

Distance/ ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia

Long Range PtP

Management

Discovery and Remote Management via Pharos Control application

HTTP/ HTTPS Web-based management

System log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

System Tools

• Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
• Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Antenna Alignment

System-level Optimizations

Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES

Dimensions(W x D x H) 85.8×43.9×29.7 mm

Interfaces 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button

Remote Reset Button

Power Status LEDs

Green

Input 100-240VAC, 50/60Hz

Output 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency >84.29%

Certifications

CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

Certification

CE, FCC, RoHS, IP65, IC

Package Contents

Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter

Pole Mounting Kits

AC Power Cord

Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment

• Operating Temperature: -40?~70? (-40?~158?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing
