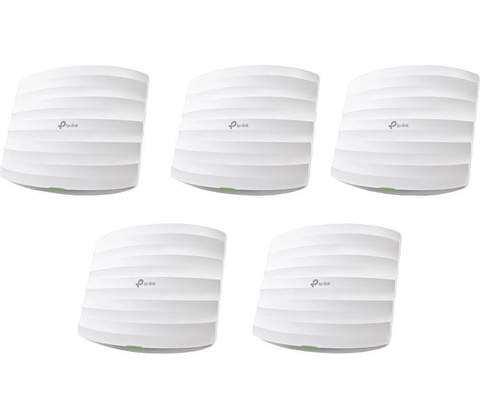

TP-Link EAP245, 5ks

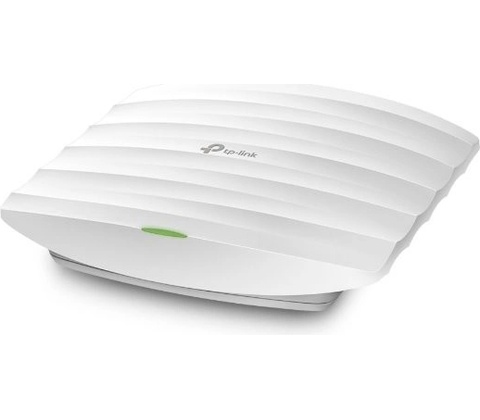

EAP245

AC1750 MU-MIMO bezdrôtový gigabitový prístupový bod pre montáž na strop

• Rýchla dvojpásmová sieť WiFi: Simultánne rýchlosti 450 Mbit/s v pásme 2,4 GHz a 1 300 Mbit/s v pásme 5 GHz poskytujú výslednú prenosovú rýchlosť 1 750 Mbit/s v sieti WiFi.†
• Integrované do platformy Omada SDN: Funkcia ZTP (Zero-Touch Provisioning)‡, centralizovaná cloudová správa a inteligentné monitorovanie.
• Centralizovaná správa: Cloudový prístup a aplikácia Omada pre maximálne pohodlie a jednoduchú správu.
• Bezproblémový roaming: Užívatelia sa môžu voľne pohybovať v pokrytej oblasti bez toho, aby to malo nejaký vplyv na streamovanie videa a hlasové hovory.*
• Podpora technológie PoE: Podporuje štandard 802.3af/at aj pasívne PoE napájanie (PoE adaptér sa predáva samostatne) pre flexibilné možnosti inštalácie.
• Zabezpečená sieť pre hostí: Poskytuje niekoľko možností overovania (SMS / Voucher atď.) a rad technológií pre zabezpečenie bezdrôtovej siete.*
• Pokročilé bezdrôtové technológie: Optimalizujte výkon siete pomocou technológií MU-MIMO, Band Steering, Airtime Fairness a Beamforming.

HARDWARE FEATURES

Interface 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)

Physical Security Lock Yes

Button Reset

Power Supply • 802.3af/at PoE • 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption 12.3 W

Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type Internal Omni

• 2.4 GHz: 3× 3.5 dBi
• 5 GHz: 3× 4 dBi

Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/g/b/a

Frequency 2.4GHz and 5GHz

Signal Rate • 5 GHz:Up to 1300 Mbps • 2.4 GHz:Up to 450 Mbps

Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication*

• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK

Transmission Power • CE: ?20 dBm (2.4GHz) ?23 dBm (5GHz) • FCC: ?24 dBm (2.4 GHz) ?24 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS

Package Contents • 5 EAP245 Access Points

• 5 Mounting Kits
• 1 Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
