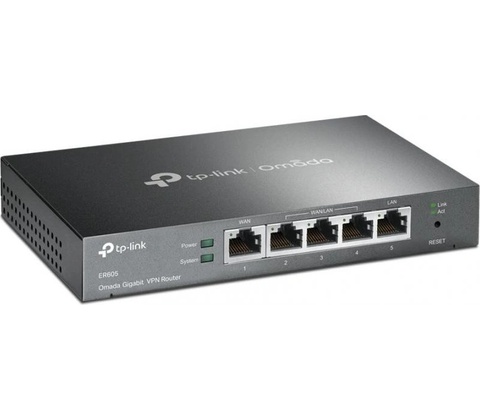

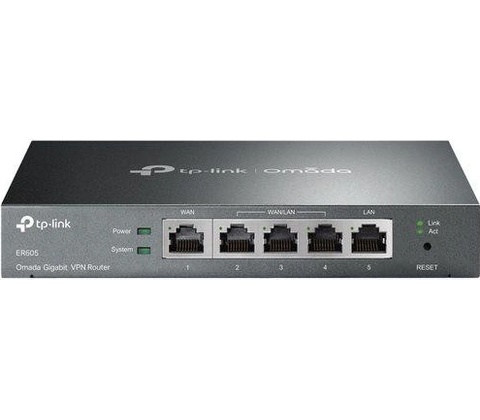

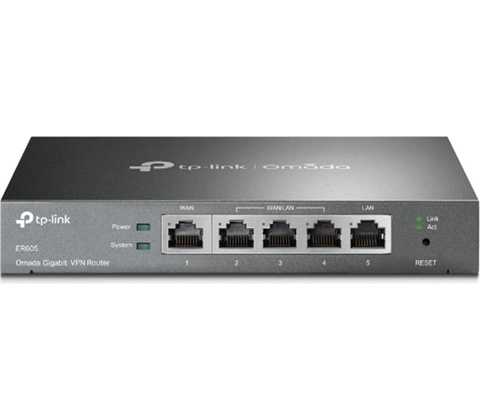

TP-Link ER605
Gigabitový VPN router Omada
- Integrováno do platformy Omada SDN: Funkce ZTP (Zero-Touch Provisioning),** centralizovaná cloudová správa a inteligentní monitorování.
- Centralizovaná správa: Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Pět gigabitových portů: Vysokorychlostní kabelová konektivita.
- Až 4 porty WAN: 1 gigabitový port WAN a 3 gigabitové porty WAN/LAN s funkcí vyrovnávání zatížení zvyšují míru využití vícelinkového širokopásmového připojení.
- VPN s vysokým zabezpečením: Podporuje připojení až 20× LAN-LAN IPsec, 16× OpenVPN,* 16× L2TP a 16× PPTP VPN.
- Mnoho funkcí zabezpečení: Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er605/
Technické specifikace
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

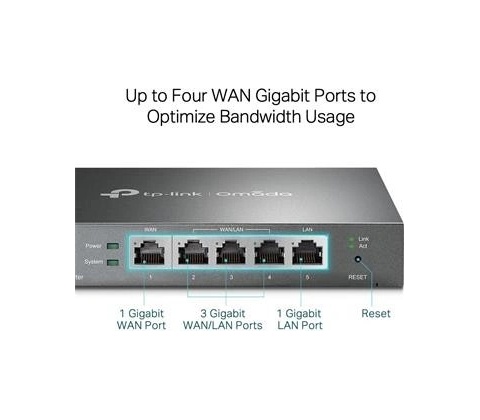

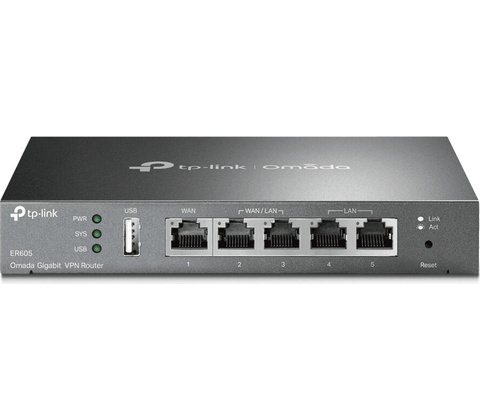

Interface • 1 Fixed Gigabit WAN Port
- 2 Fixed Gigabit LAN Ports
- 2 Changeable Gigabit WAN/LAN Ports
- 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100ohm STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100ohm STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply External 12V/1A DC Adapter
Flash 128 MB NAND
DRAM 256 MB DDR
LED PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions (WxDxH) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Max Power Consumption 7.94 W
PERFORMANCE
Concurrent Session 150
New Sessions /Second 2,6
NAT (Static IP) • Upload: 945.77 Mbps
- Download: 945.56 Mbps
- Bi-Directional: 1808.29 Mbps
NAT(DHCP) • Upload: 945.93 Mbps
- Download: 945.43 Mbps
- Bi-Directional: 1808.11 Mbps
NAT(PPPoE) • Upload: 940.44Mbps
- Download: 940.52 Mbps
- Bi-Directional: 1804.27 Mbps
NAT (L2TP) • Upload: 845.64 Mbps
- Download: 802.65 Mbps
- Bi-Directional: 931.96 Mbps
NAT (PPTP) • Upload: 771.66 Mbps
- Download: 874.81 Mbps
- Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate • Upload/Download: 1,402,238 pps • Bi-Directional: 1,681,548 pps
IPsec VPN Throughput • ESP-MD5-AES256: 171.26 Mbps • ESP-SHA1-AES256: 224.86 Mbps • ESP-SHA2-AES256: 248.04 Mbps
OpenVPN • 21.70 Mbps
L2TP VPN Throughput • Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps
PPTP VPN Throughput • Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP • PPPoE • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port‡
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces*
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing • Policy Routing
Bandwidth Control IP-based Bandwidth Control
Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection
NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server • 10 PPTP VPN Clients** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server • 10 L2TP VPN Clients** • 16 Tunnels • L2TP over IPSec
OpenVPN • OpenVPN Server* • 10 OpenVPN Clients* • 16 OpenVPN Tunnels*
SECURITY
Filtering • WEB Group Filtering§ • URL Filtering • Web Security§
ARP Inspection • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook*
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS

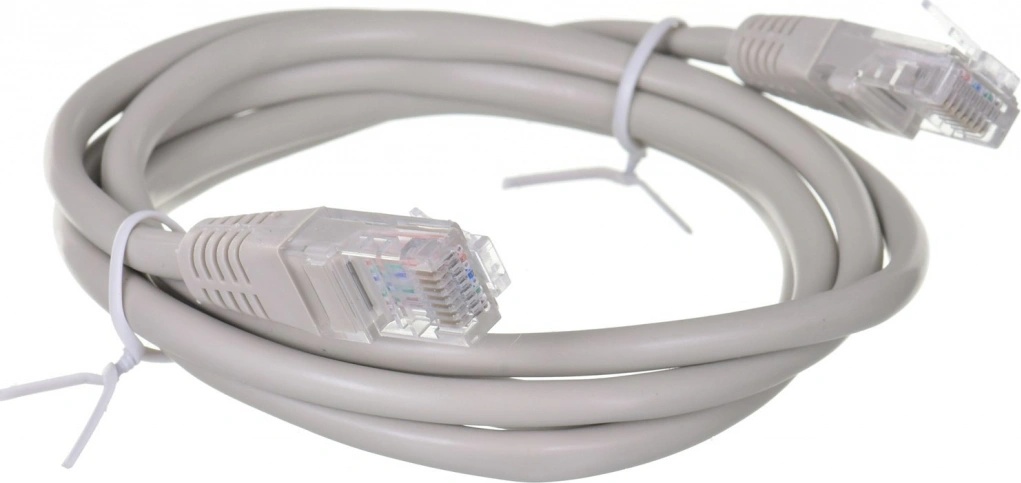

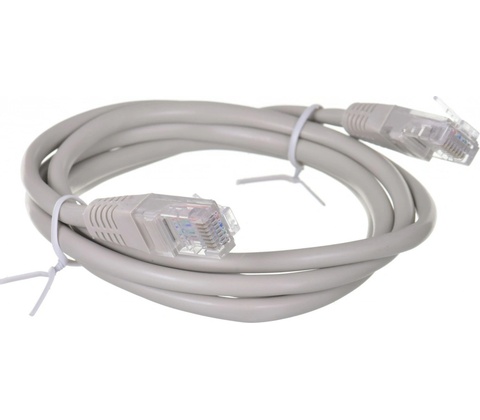

Package Contents • Gigabti VPN Router ER605 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0°C–40°C (32°F–104°F); • Storage Temperature: -40°C–70°C (-40°F–158°F) • Operating Humidity: 10–90% RH non-condensing • Storage Humi
- Bi-Directional: 999.54 Mbps
- 64 Byte Packet Forwarding Rate • Upload/Download: 1,402,238 pps
- Bi-Directional: 1,681,548 pps
- IPsec VPN Throughput • ESP-MD5-AES256: 171.26 Mbps
- ESP-SHA1-AES256: 224.86 Mbps
- ESP-SHA2-AES256: 248.04 Mbps
OpenVPN • 21.70 Mbps
L2TP VPN Throughput • Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps
PPTP VPN Throughput • Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
- PPPoE
- PPTP
- L2TP
- Mobile Broadband: 4G/3G modem for backup via USB port‡
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server/Client
- DHCP Address Reservation
- Multi-net DHCP*
- Multi-IP Interfaces*
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing • Policy Routing
Bandwidth Control IP-based Bandwidth Control
Load Balance • Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing§, Failover)
- Online Detection
NAT • One-to-One NAT§
- Multi-Net NAT
- Virtual Server
- Port Triggering§
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall
- VPN Passthrough
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS Defence, Ping of Death
- Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN • 20 IPsec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IKEv1/v2
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
- 10 PPTP VPN Clients**
- 16 Tunnels
- PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
- 10 L2TP VPN Clients**
- 16 Tunnels
- L2TP over IPSec
OpenVPN • OpenVPN Server*
- 10 OpenVPN Clients*
- 16 OpenVPN Tunnels*
SECURITY
Filtering • WEB Group Filtering§
- URL Filtering
- Web Security§
ARP Inspection • Sending GARP Packets§
- ARP Scanning§
- IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication
- Simple Password*
- Hotspot(Local User / Voucher* / SMS* / Radius*)
- External Radius Sever
- External Portal Sever*
- Facebook*
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)
- NTP Synchronize
- Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • Gigabti VPN Router ER605
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0°C–40°C (32°F–104°F);
- Storage Temperature: -40°C–70°C (-40°F–158°F)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
