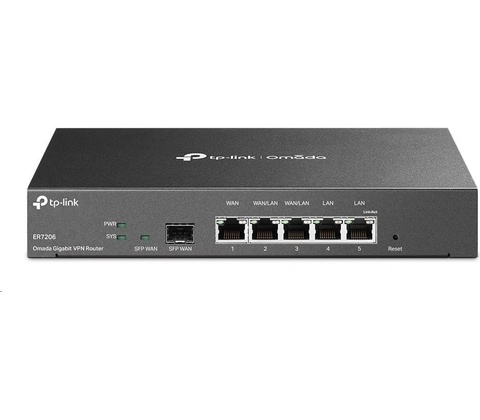

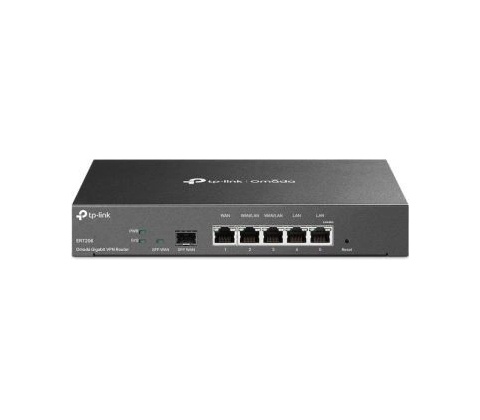

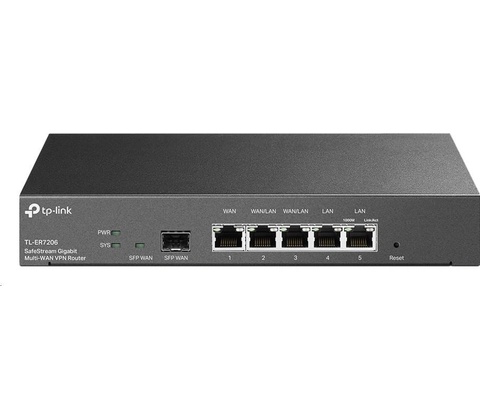

TP-Link ER7206

TP-Link ER7206

Gigabitový VPN router Omada

• Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.
• Centralizovaná správa - Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
• Gigabitové porty - 1 gigabitový port SFP a 5 gigabitových portů RJ45 poskytují vysokorychlostní kabelové připojení.
• Až 4 porty WAN - 1 gigabitový port SFP WAN, 1 gigabitový port RJ45 WAN, 2 gigabitové porty WAN/LAN optimalizují využití šířky pásma.
• VPN s vysokým zabezpečením - Podporuje připojení až 100× LAN-LAN IPsec, 50× OpenVPN, 50× L2TP a 50× PPTP VPN.
• Mnoho funkcí zabezpečení - Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.

Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7206/

Technické specifikace

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

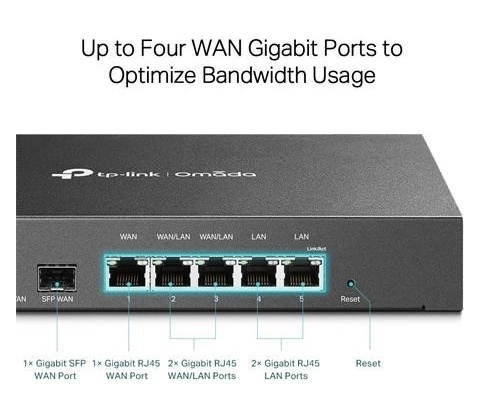

Interface

• 1 Fixed Gigabit SFP WAN Port
• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

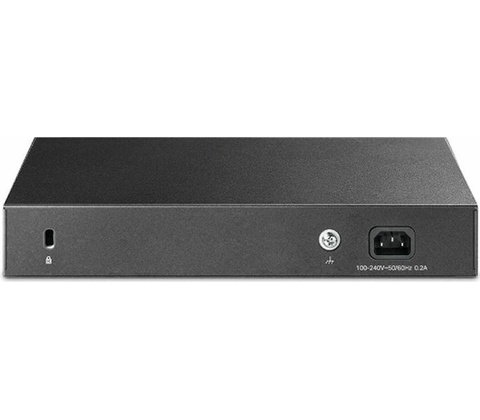

Power Supply 100–240 V~50/60 Hz

Flash

SPI 4MB + NAND 128MB

DRAM 512MB

LED

PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

PERFORMANCE

Concurrent Session 150

New Sessions /Second 5,5

NAT (Static IP) 940.3 Mbps / 940.2 Mbps

NAT(DHCP) 940.3 Mbps / 940.4 Mbps

NAT(PPPoE) 939.7 Mbps / 937.9 Mbps

NAT (L2TP) 918.0 Mbps / 917.9 Mbps

NAT (PPTP) 918.9 Mbps / 914.7 Mbps

IPsec VPN Throughput (AES256) 291.6 Mbps

IPsec VPN Throughput 291.6 Mbps

L2TP VPN Throughput

• Unencrypted: 1360.3 Mbps
• Encrypted: 202.3 Mbps

PPTP VPN Throughput

• Unencrypted: 1379.3 Mbps
• Encrypted: 115.6 Mbps

66 Byte Packet forwarding rate 486,918 pps / 488,372 pps 1,518 Byte Packet forwarding rate 81,274 pps / 81,274 pps

BASIC FUNCTIONS

WAN Connection Type

• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP

MAC Clone

Modify WAN/LAN MAC Address†

DHCP

• DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*

IPv6

Developing‡

VLAN 802.1Q VLAN

IPTV

IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

• Static Routing
• Policy Routing

Bandwidth Control

• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth

Load Balance

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection

NAT

• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security

• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management

Session Limit

IP-based Session Limit

VPN

IPsec VPN

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

• PPTP VPN
  • PPTP VPN Server
  • 10 PPTP VPN Clients
  • 50 Tunnels
  • PPTP with MPPE Encryption
• L2TP VPN
  • L2TP VPN Server
  • 10 L2TP VPN Clients
  • 50 Tunnels
  • L2TP over IPSec

OpenVPN

• OpenVPN Server*
• 10 OpenVPN Clients*
• 50 OpenVPN Tunnels*

SECURITY

Filtering

WEB Group Filtering§

URL Filtering

Web Security§

ARP Inspection

• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§

Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication

• No Authentication
• Simple Password*
• Hotspot(Local User / Voucher* / SMS* / Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook*

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• ER7206
• Power Cord
• Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0–40 °C (32–104 °F);
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
