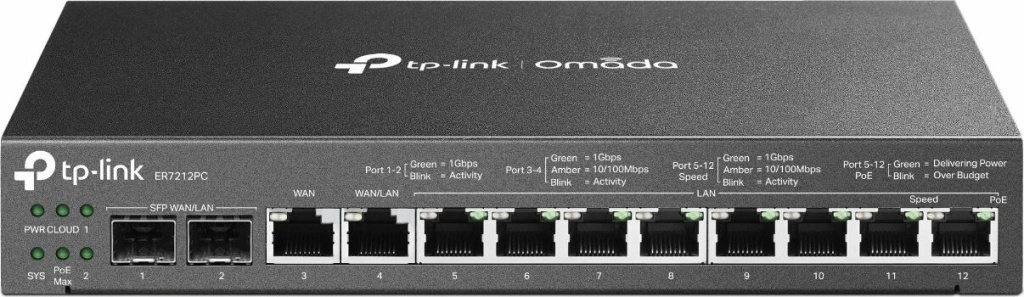

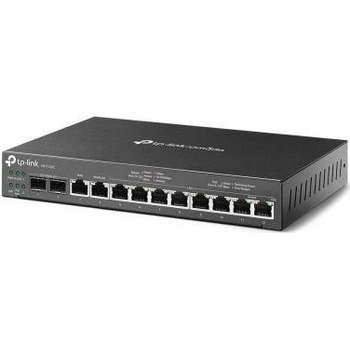

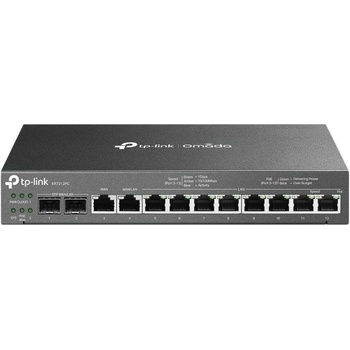

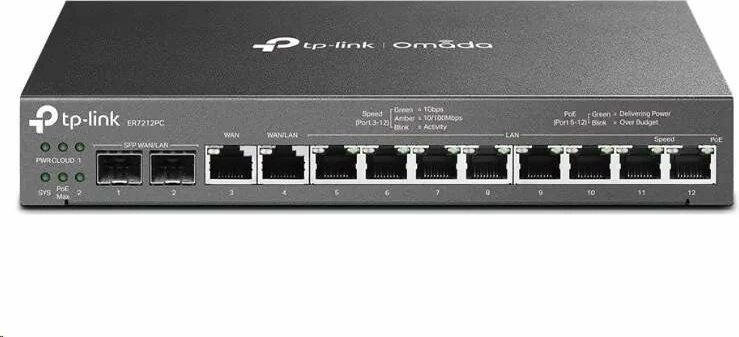

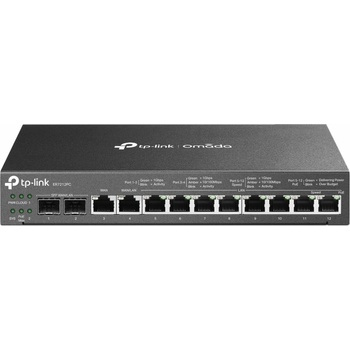

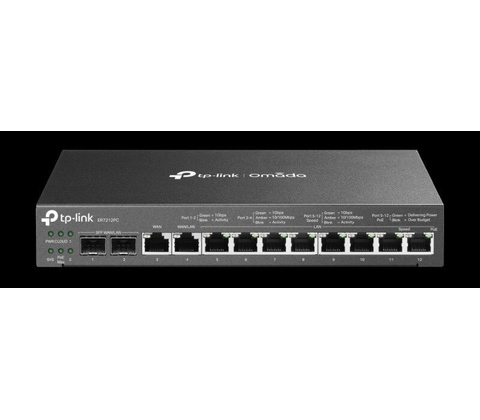

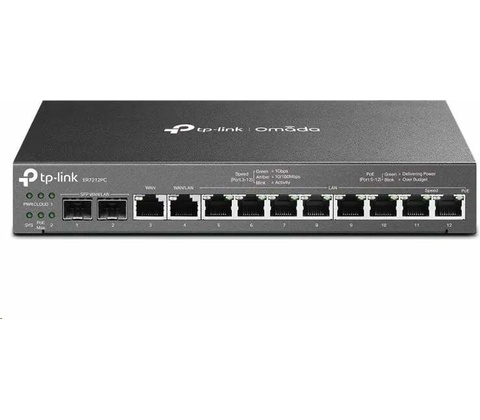

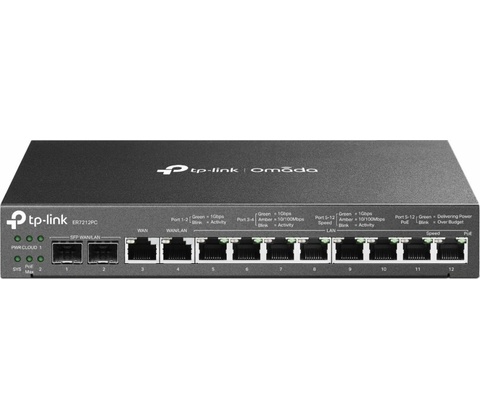

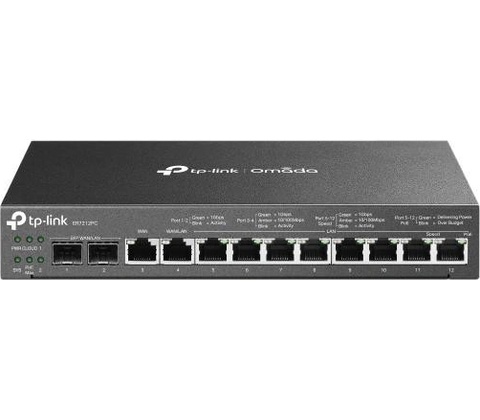

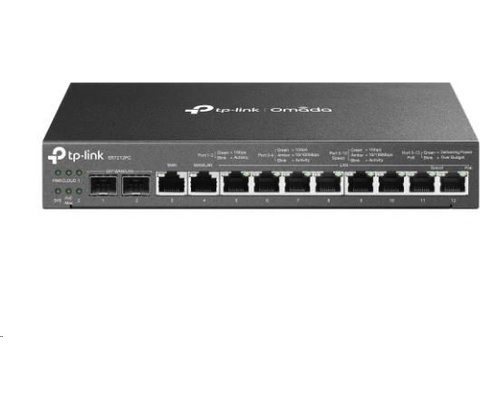

TP-Link ER7212PC

ER7212PC

Gigabitový VPN router Omada 3 v 1

• Router 3 v 1: Plní funkciu routera, PoE switcha a kontroléra Omada.
• Profesionálny hardvér: Dvojjadrový procesor 1,2 GHz s 1 GB pamäte DDR3 zaisťuje viac ako dostatok výkonu až pre 12 gigabitových portov.
• Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.
• PoE s výstupným napájaním 110 W: 8 portov PoE+ RJ45 LAN zodpovedajúcich štandardu 802.3at/af s celkovým výstupným napájaním 110 W.*
• Centralizovaná správa: Cloudový prístup a aplikácia Omada pre pohodlnú a jednoduchú správu.
• VPN s vysokým zabezpečením: Podporuje pripojenie IPsec VPN, OpenVPN a L2TP/PPTP VPN.
• Jednoduchá inštalácia: Kompaktné prevedenie bez ventilátora pre umiestnenie na stôl alebo montáž na stenu.

HARDWARE FEATURES

Standards and Protocols• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Interface• 2 Gigabit SFP WAN/LAN ports

• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports

Network Media• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)

EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m)

EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan QuantityFanless

ButtonReset Button

Power Supply53.5VDC/2.43A Adapter

PoE Budget8 ports PoE+ output, 110 W PoE Budget

Flash8Mb Nor + 4 GB EMMC

DRAM1 GB DDR3

Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection4 kV surge protection

EnclosureSteel

MountingDesktop/Wall-mount

PERFORMANCE

Concurrent Session24,980

New Sessions /Second1,900

NAT (Static IP)935.5 Mbps / 942.1 Mbps

NAT(DHCP)940.2 Mbps / 941.7 Mbps

NAT(PPPoE)913.1 Mbps / 935.2 Mbps

NAT (L2TP)545.0 Mbps / 912.7 Mbps

NAT (PPTP)523.0 Mbps / 912.8 Mbps

IPsec VPN Throughput (AES256)168.5 Mbps

OpenVPN34 Mbps

L2TP VPN Throughput• Unencrypted: 845.3 Mbps • Encrypted: 333.2 Mbps

PPTP VPN Throughput• Unencrypted: 1012.6 Mbps • Encrypted: 401.4 Mbps 66 Byte Packet forwarding rate154,069 pps / 156,977 pps 1,518 Byte Packet forwarding rate81,193 pps / 81,193 pps

BASIC FUNCTIONS

WAN Connection Type• Static IP

• Dynamic IP
• PPPoE
• PPTP
• L2TP

DHCP• DHCP Server

• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6support

VLAN802.1Q VLAN

IPTVIGMP v2/v3 Proxy

ADVANCED FUNCTIONS

Advanced Routing• Static Routing • Policy Routing

Bandwidth ControlIP/Port-based Bandwidth Control

Load Balance• Intelligent Load Balance

• Application Optimized Routing
• Link Backup
• Online Detection

NAT• Multi-Net NAT

• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session LimitIP-based Session Limit

VPN

IPsec VPN• 20 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN• PPTP VPN Server

• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption

L2TP VPN• L2TP VPN Server

• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec

OpenVPN• OpenVPN Server

• OpenVPN Client (10)§
• 16 OpenVPN Tunnels

SECURITY

FilteringURL Filtering

Attack Defense• TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Access ControlSource/Destination IP Based Access Control

AUTHENTICATION

Web Authentication• No Authentication

• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook

MANAGEMENT

Omada AppYes

Cloud AccessYes

ServiceDynamic DNS (Dyndns, No-IP)

Maintenance• Web Management Interface

• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support

Management Features• Automatic Device Discovery

• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches and 10 EAPs

OTHERS

CertificationCE, FCC, RoHS

Package Contents• ER7212PC

• Power Adapter
• Power Cord
• Quick Installation Guide

System Requirements• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 • MAC OS, NetWare, UNIX or Linux

Environment• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
