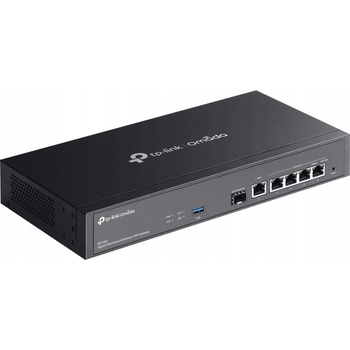

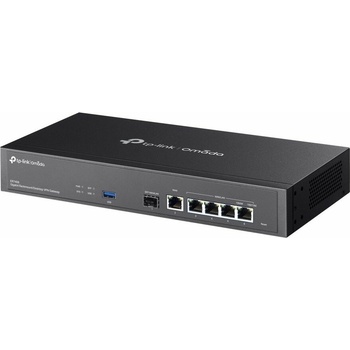

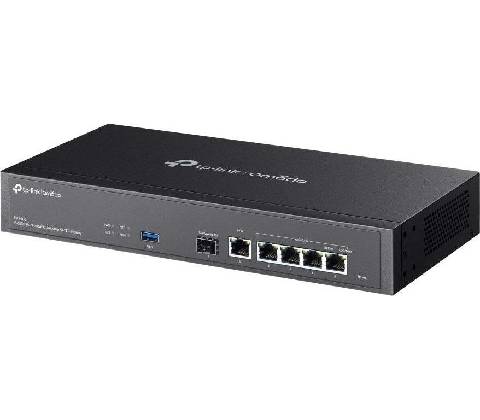

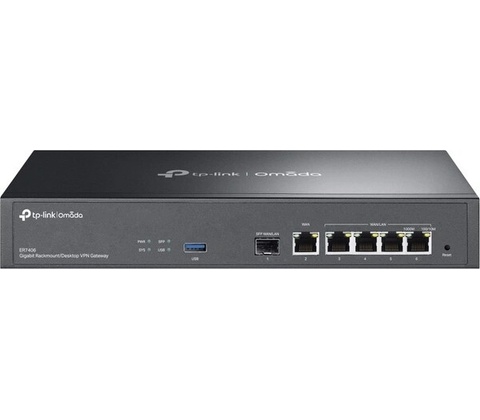

TP-Link ER7406

1× gigabitový SFP WAN/LAN port 5× gigabitových RJ45 portů (1× WAN, 4× WAN/LAN) 1× USB 3.0 port (podporuje USB úložiště a LTE zálohování s LTE donglem)

Vyvažování zátěže na až 5 WAN portech zvyšuje využití více-linek širokopásmového připojení

Vysoce zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN

Centralizovaná správa v cloudu přes web nebo aplikaci Omada*

Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro zvýšenou bezpečnost

Montáž do racku/stolní provedení

SECURITY

Access Control Source/Destination IP Based Access Control

Filtering

• WEB Group Filtering§
• URL Filtering
• Web Security§

ARP Inspection

• Sending GARP Packets
• ARP Scanning§
• IP-MAC Binding

Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity Fanless

Button Reset Button

Power Supply 100-240VAC, 50/60Hz

Flash 128 MB NAND

DRAM 512 MB DDR4

LED PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions ( W x D x H ) 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

Protection 4 kV surge protection

Enclosure Steel

Mounting

• Desktop
• Rackmountable

Max Power Consumption

• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)

PERFORMANCE

• IPS Throughput TCP: 229 Mbps;
• UDP: 188 Mbps
• DPI Throughput TCP: 933 Mbps;
• UDP: 927 Mbps

GRE

• Unencrypted: 611.9 Mbps
• Encrypted: 325.0 Mbps

WireGuard VPN 341.3 Mbps

Concurrent Session 150,000

New Sessions /Second 5,300

NAT (Static IP) 945.3 Mbps / 940.5 Mbps

NAT(DHCP) 939.6 Mbps / 940.9 Mbps

NAT(PPPoE) 943.6 Mbps / 940.9 Mbps

NAT (L2TP) 880.1 Mbps / 859.0 Mbps

NAT (PPTP) 855.0 Mbps / 907.2 Mbps

IPsec VPN Throughput

• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps

OpenVPN 139.1 Mbps

L2TP VPN Throughput

• Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps

PPTP VPN Throughput

• Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps

SSL VPN Throughput 131.6 Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81,279 pps / 81,275 pps

BASIC FUNCTIONS

WAN Connection Type

• Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP

MAC Clone Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)

DHCP

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing

• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)

Bandwidth Control IP-based Bandwidth Control

Load Balance

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT

• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit IP-based Session Limit

VPN

GRE OK (Only in Standalone Mode)

SSL VPN 50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

• PPTP VPN
  • PPTP VPN Server
  • PPTP VPN Client (10)
  • 50 Tunnels
  • PPTP with MPPE Encryption
• L2TP VPN
  • L2TP VPN Server
  • L2TP VPN Client (10)
  • 50 Tunnels
  • L2TP over IPSec

OpenVPN

• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

AUTHENTICATION

Web Authentication

• No Authentication
• Simple Password
• Hotspot (Local User /Voucher*/ SMS/Radius)
• External Radius Server
• External Portal Sever<
• LDAP

MANAGEMENT

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute) (only in Standalone Mode)
• NTP Synchronize (only in Standalone Mode)
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.

Management Features

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

OTHERS

Certification CE, FCC, RoHS

Package Contents

• ER7406
• Power Cord
• Quick Installation Guide
• Rackmount Kit

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
