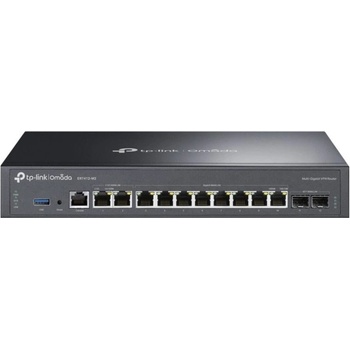

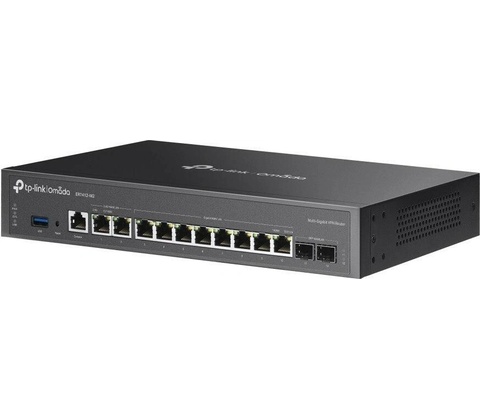

TP-Link ER7412-M2

TP-Link ER7412-M2

Omada Multi-Gigabit VPN Router

Čtyřjádrový procesor @2.0GHz 2× 2,5G RJ45 WAN/LAN porty 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45) 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)

Až 11 WAN portů

Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN

Centralizovaná správa cloudu přes web nebo aplikaci Omada

Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/

Technické specifikace

SECURITY

Access Control • Source/Destination IP-Based ACL

• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL

Filtering • WEB Group Filtering§

• URL Filtering
• Web Security§

ARP Inspection • Sending GARP Packets§

• ARP Scanning§
• IP-MAC Binding§

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface • 1× 2.5G RJ45 WAN/LAN Port

• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

Button Reset Button

Power Supply 100–240 VAC, 50/60 Hz

Flash 128MB NAND

DRAM 1 GB DDR4

Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)

Protection 4 kV surge protection

Enclosure Steel

Mounting • Desktop • Rackmountable

Max Power Consumption 18.5W (With USB 3.0 connected)

PERFORMANCE

GRE • Unencrypted: 1153.0 Mbps • Encrypted: 559.2 Mbps

WireGuard VPN 771.6 Mbps

Concurrent Session 1,000,000

New Sessions /Second 7

NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps

NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps

NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps

NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps

NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps

IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps

• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps

OpenVPN UDP: 266.2 Mbps

L2TP VPN Throughput • Unencrypted: 2724.5 Mbps • Encrypted: 1018.4Mbps

PPTP VPN Throughput • Unencrypted: 3035 Mbps • Encrypted: 534.6 Mbps

SSL VPN Throughput 263.1 Mbps 66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps

BASIC FUNCTIONS

WAN Connection Type • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone Modify WAN/LAN MAC Address†

DHCP • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode)

Bandwidth Control IP/Port-based Bandwidth Control

Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection

NAT • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP

Session Limit IP-based Session Limit

VPN

GRE Only in Standalone Mode

SSL VPN 80 Tunnels

IPsec VPN • 150 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server • PPTP VPN Client (15)** • 150 Tunnels • PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server • L2TP VPN Client (15)** • 150 Tunnels • L2TP over IPSec

OpenVPN • OpenVPN Server • OpenVPN Client (11)** • 121 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode

AUTHENTICATION

Web Authentication • No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP

MANAGEMENT

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller

Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule*

OTHERS

Certification CE, FCC

Package Contents • ER7412-M2 • Power Cord • Quick Installation Guide • Rackmount Kit • RJ45 Console Cord

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storag

• ESP-SHA512-AES256: 1132.8 Mbps
  • OpenVPN UDP: 266.2 Mbps
  • L2TP VPN Throughput • Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps
  • PPTP VPN Throughput • Unencrypted: 3035 Mbps

• Encrypted: 534.6 Mbps

SSL VPN Throughput 263.1 Mbps 66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps

BASIC FUNCTIONS

WAN Connection Type • Static IP/Dynamic IP

• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone Modify WAN/LAN MAC Address†

DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing • Static Routing

• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)

Bandwidth Control IP/Port-based Bandwidth Control

Load Balance • Intelligent Load Balance

• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT • One-to-One NAT§

• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit IP-based Session Limit

VPN

GRE Only in Standalone Mode

SSL VPN 80 Tunnels

IPsec VPN • 150 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP

MANAGEMENT

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller
• Omada Software Controller

Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance • Web Management Interface

• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery*

• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*

OTHERS

Certification CE, FCC

Package Contents • ER7412-M2

• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0–45 ? (32–113 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
