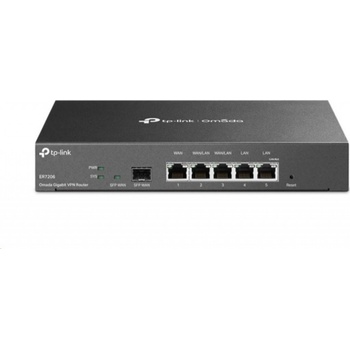

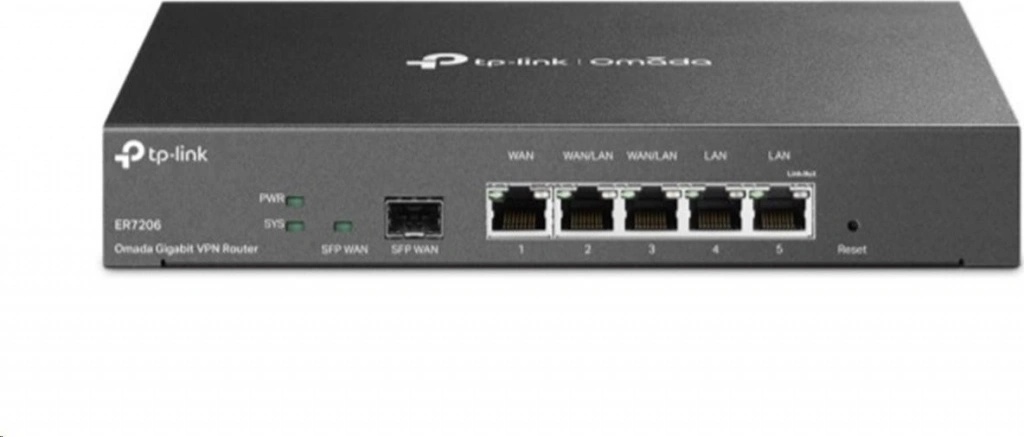

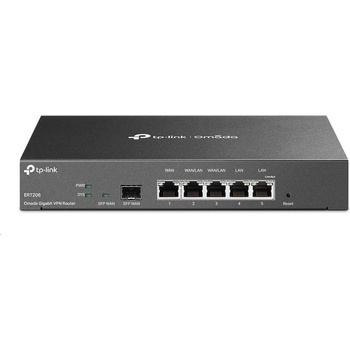

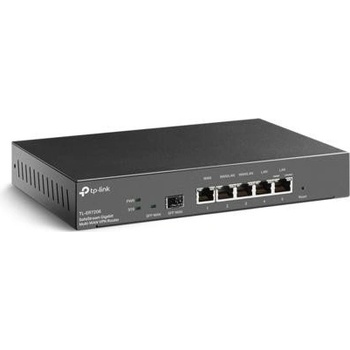

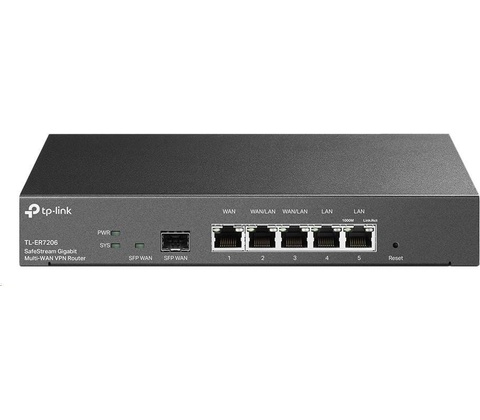

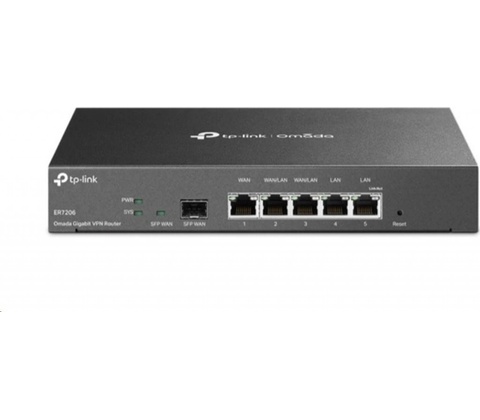

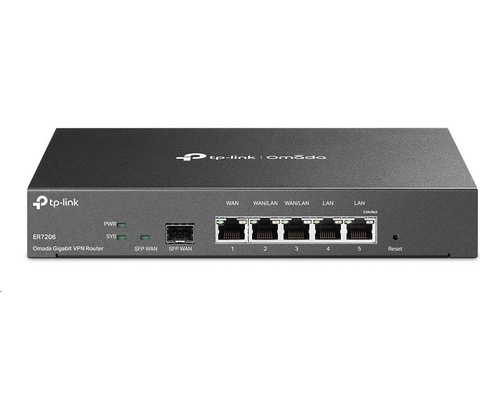

TP-Link TL-ER7206

SafeStream Gigabitový multi-WAN VPN router

• Integrované do Omada SDN: Zero-Touch Provisioning (ZTP) **, centralizovaná správa cloudu a inteligentné monitorovanie.
• Centralizovaná správa: Cloudový prístup a aplikácia Omada pre mimoriadne pohodlie a ľahkú správu.
• Gigabitové porty: 1 gigabitový port SFP a 5 gigabitových portov RJ45 poskytujú vysokorýchlostné káblové pripojenie.

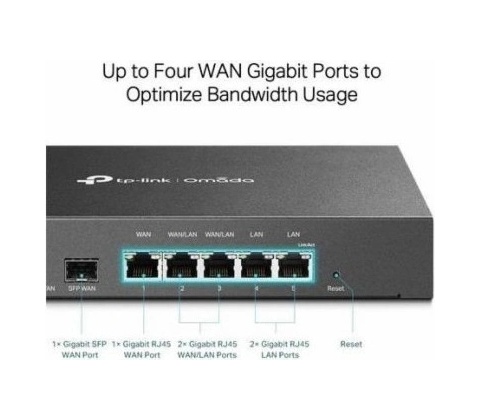

• Až 4 porty WAN: 1 gigabitový port SFP WAN, 1 gigabitový port RJ45 WAN, 2 gigabitové porty WAN / LAN optimalizujú využitie šírky pásma.
• Vysoko zabezpečená VPN: Podporuje až 100 × pripojenie LAN-to-LAN IPsec, 50 × OpenVPN *, 50 × L2TP a 50 × PPTP pripojenie VPN.
• Bohaté funkcie zabezpečenia: Pokročilé zásady brány firewall, ochrana DoS, filtrovanie IP / MAC / URL a ďalšie funkcie zabezpečenia chránia vašu sieť a dáta.

Získajte viac informácií o službe Omada Cloud SDN>

HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface • 1 Fixed Gigabit SFP WAN Port

• 1 Fixed Gigabit RJ45 WAN Port
• 2 Fixed Gigabit RJ45 LAN Ports
• 2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button Reset Button

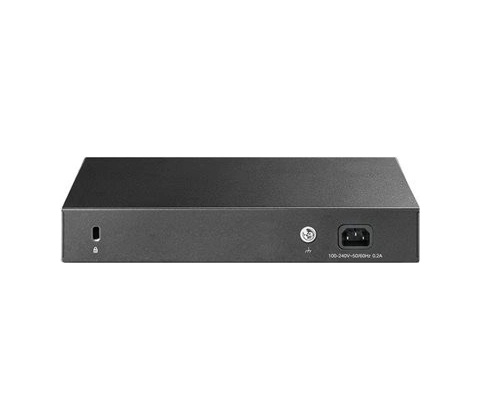

Power Supply 100–240 V~50/60 Hz

Flash SPI 4MB + NAND 128MB

DRAM 512MB

LED PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

PERFORMANCE

Concurrent Session 150,000

IPsec VPN Throughput 291.6 Mbps

BASIC FUNCTIONS

WAN Connection Type • Static/Dynamic IP

• PPPoE
• PPTP
• L2TP

MAC Clone Modify WAN/LAN MAC Address†

• DHCP • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces*
• Multi-Net DHCP*

IPv6 Developing‡

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing • Policy Routing

Bandwidth Control • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth

Load Balance • Intelligent Load Balance

• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection

NAT • One-to-One NAT§

• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security • SPI Firewall

• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management

Session Limit IP-based Session Limit

VPN

IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• 10 PPTP VPN Clients
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• 10 L2TP VPN Clients
• 50 Tunnels
• L2TP over IPSec

OpenVPN • OpenVPN Server*

• 10 OpenVPN Clients*
• 50 OpenVPN Tunnels*

SECURITY

Filtering WEB Group Filtering§

URL Filtering

Web Security§

ARP Inspection • Sending GARP Packets§

• ARP Scanning§
• IP-MAC Binding§

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Access Control Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password*
• Hotspot(Local User / Voucher* / SMS* / Radius*)
• External Radius Sever
• External Portal Sever*
• Facebook*

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance • Web Management Interface

• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support

Management Features • Automatic Device Discovery

• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)**

OTHERS

Certification CE, FCC, RoHS

Package Contents • TL-ER7206

• Power Cord
• Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
