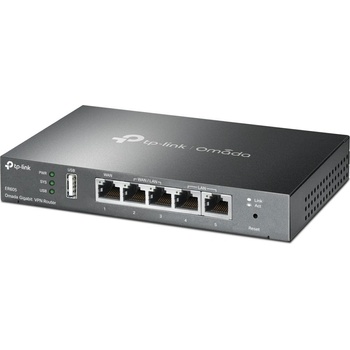

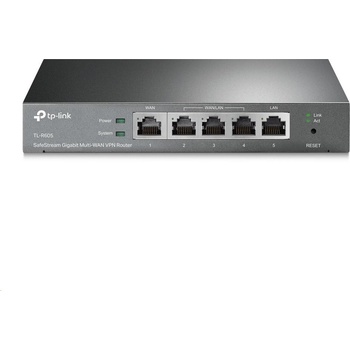

TP-Link TL-R605

Gigabitový VPN router Omada

• Integrováno do platformy Omada SDN: Funkce ZTP (Zero-Touch Provisioning),** centralizovaná cloudová správa a inteligentní monitorování.
• Centralizovaná správa: Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
• Pět gigabitových portů: Vysokorychlostní kabelová konektivita.
• Až 3 Ethernet porty WAN: 1 gigabitový port WAN a 2 gigabitové porty WAN/LAN s funkcí vyrovnávání zatížení zvyšují míru využití vícelinkového širokopásmového připojení.
• Jeden USB WAN port pro mobilní připojení: Pro zálohování WAN je podporováno mobilní širokopásmové připojení pomocí 4G/3G modemu připojeného k USB portu.‡
• VPN s vysokým zabezpečením: Podporuje připojení až 20× LAN-LAN IPsec, 16× OpenVPN,* 16× L2TP a 16× PPTP VPN.
• Mnoho funkcí zabezpečení: Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.

Parametry

HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

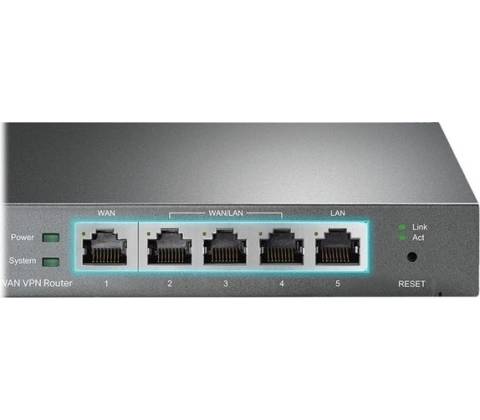

Interface • 1 Fixed Gigabit WAN Port• 2 Fixed Gigabit LAN Ports• 2 Changeable Gigabit WAN/LAN Ports• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100? STP (Max 100m)• 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100? STP (Max 100m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button

Reset Button

Power Supply

External 12V/1A DC Adapter

Flash 128 MB NAND

DRAM 256 MB DDR

LED

PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB

Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

Max Power Consumption 7.94 W

PERFORMANCE

Concurrent Session 150,000

New Sessions /Second 2,600

NAT (Static IP) • Upload: 945.77 Mbps• Download: 945.56 Mbps• Bi-Directional: 1808.29 Mbps

NAT(DHCP) • Upload: 945.93 Mbps• Download: 945.43 Mbps• Bi-Directional: 1808.11 Mbps

NAT(PPPoE) • Upload: 940.44Mbps• Download: 940.52 Mbps• Bi-Directional: 1804.27 Mbps

NAT (L2TP) • Upload: 845.64 Mbps• Download: 802.65 Mbps• Bi-Directional: 931.96 Mbps

NAT (PPTP) • Upload: 771.66 Mbps• Download: 874.81 Mbps• Bi-Directional: 999.54 Mbps 64 Byte Packet Forwarding Rate • Upload/Download: 1,402,238 pps• Bi-Directional: 1,681,548 pps

IPsec VPN Throughput • ESP-MD5-AES256: 171.26 Mbps• ESP-SHA1-AES256: 224.86 Mbps• ESP-SHA2-AES256: 248.04 Mbps

OpenVPN • 21.70 Mbps

L2TP VPN Throughput • Unencrypted: 864.65 Mbps• Encrypted: 47.11 Mbps

PPTP VPN Throughput • Unencrypted: 703.20 Mbps• Encrypted: 76.65 Mbps

BASIC FUNCTIONS

WAN Connection Type • Static/Dynamic IP• PPPoE• PPTP• L2TP• Mobile Broadband: 4G/3G modem for backup via USB port‡

MAC Clone

Modify WAN/LAN MAC Address†

DHCP • DHCP Server/Client• DHCP Address Reservation• Multi-net DHCP*• Multi-IP Interfaces*

IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough

VLAN 802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing• Policy Routing

Bandwidth Control

IP-based Bandwidth Control

Load Balance • Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing§, Failover)• Online Detection

NAT • One-to-One NAT§• Multi-Net NAT• Virtual Server• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security • SPI Firewall• VPN Passthrough• FTP/H.323/PPTP/SIP/IPsec ALG• DoS Defence, Ping of Death• Local Management

Session Limit

IP-based Session Limit

VPN

IPsec VPN • 20 IPsec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IKEv1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)

• PPTP VPN
  • PPTP VPN Server• 10 PPTP VPN Clients**• 16 Tunnels• PPTP with MPPE Encryption
• L2TP VPN
  • L2TP VPN Server• 10 L2TP VPN Clients**• 16 Tunnels• L2TP over IPSec

OpenVPN • OpenVPN Server*• 10 OpenVPN Clients*?• 16 OpenVPN Tunnels*

SECURITY

Filtering • WEB Group Filtering§• URL Filtering• Web Security§

ARP Inspection • Sending GARP Packets§• ARP Scanning§• IP-MAC Binding§

Attack Defense • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication • No Authentication• Simple Password*• Hotspot(Local User / Voucher* / SMS* / Radius*)• External Radius Sever• External Portal Sever*• Facebook*

MANAGEMENT

Omada App

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)§• NTP Synchronize§• Syslog Support

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

Package Contents • Gigabti VPN Router ER605• Power Adapter• RJ45 Ethernet Cable• Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?);• Storage Temperature: -40–70 ? (-40–158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
