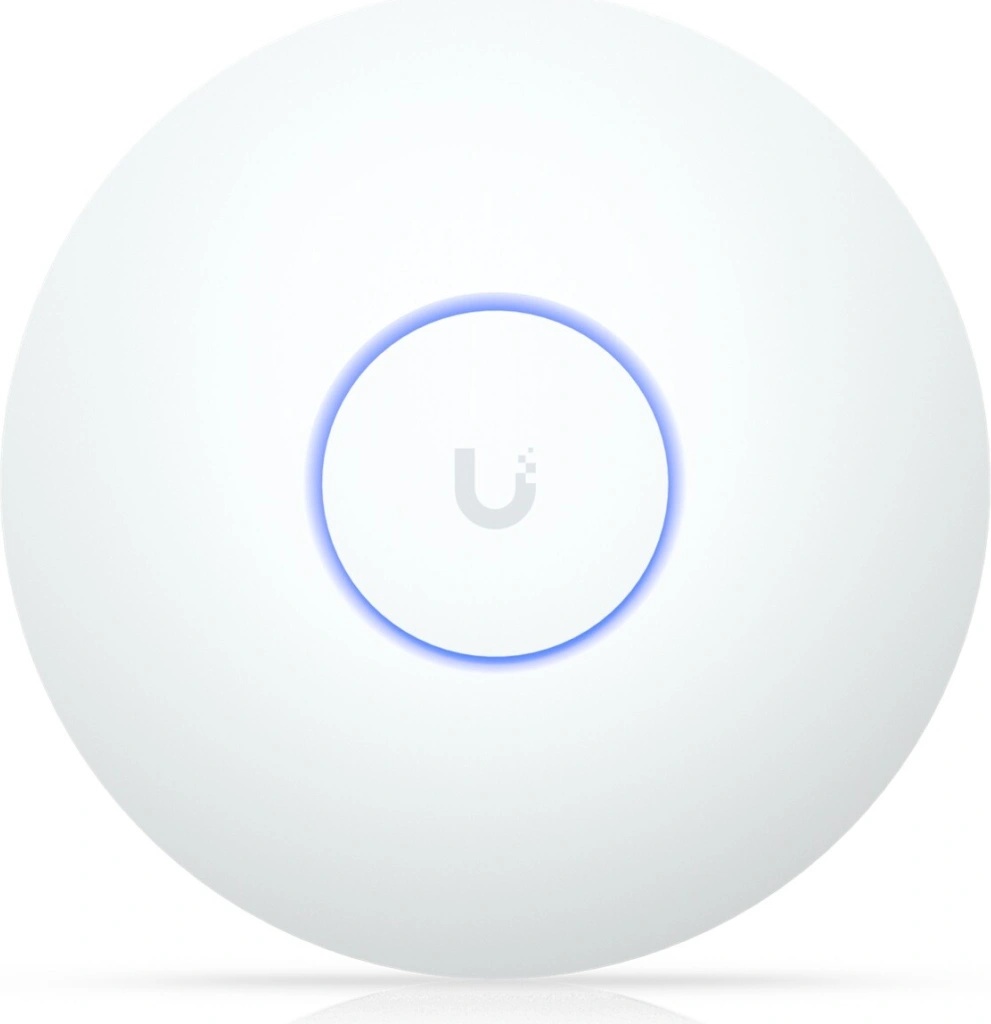

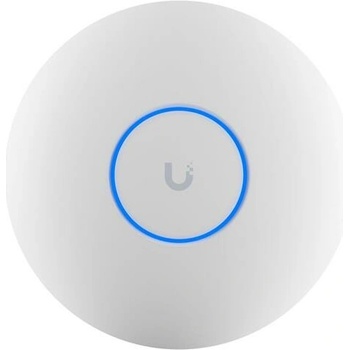

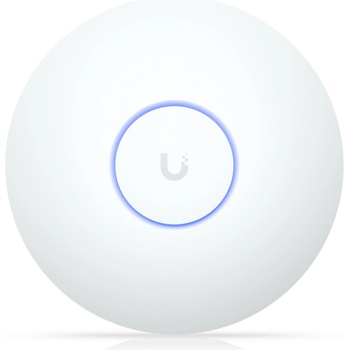

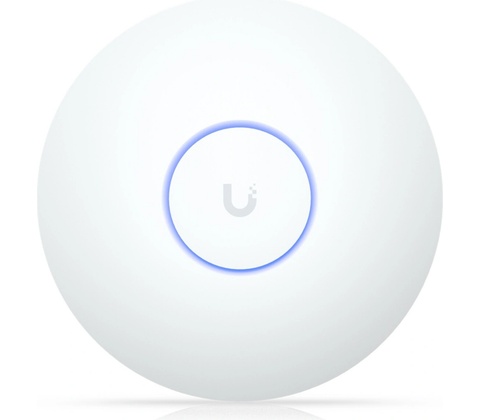

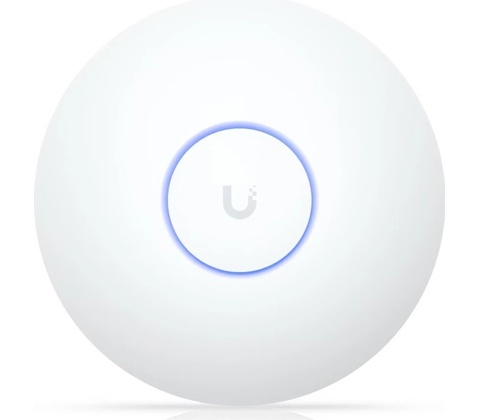

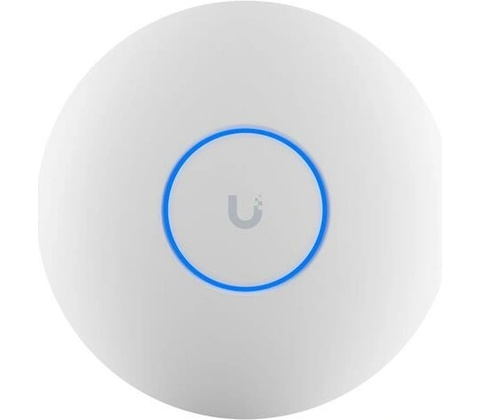

Ubiquiti U7-LR

Technical Specifications

Overview

Dimensions

O175.7 x 43 mm (O6.9 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams 5

Coverage Area 160 m2 (1,750 ft2)

Max. Client Count 300+

Uplink 2.5 GbE

Mounting

Ceiling, Wall (Plastic Mounting Plate included)

Power Method

PoE

Performance

MIMO 5 GHz 3 x 3 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate 5 GHz 4.3 Gbps (BW160) 2.4 GHz 688 Mbps (BW40)

Antenna Gain 5 GHz 6 dBi 2.4 GHz 4 dBi

Max. TX Power 5 GHz 27 dBm 2.4 GHz 26 dBm

Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes 802.11v BSS Transition Management

Yes 802.11r Fast Roaming

Yes 802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page

Yes

Voucher Authentication

Yes

Payment-Based Authentication

Yes

External Portal Server Support

Yes

Password Authentication

Yes

Guest Network Isolation

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption 14W

Includes PoE Adapter

No

Supported Voltage Range 42.5—57V DC

Networking Interface (1) 2.5 GbE RJ45 port

Weight 448 g (15.8 oz)

Management

Ethernet

Enclosure Material

Polycarbonate, aluminum alloy

Mount Material

Polycarbonate, galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Ambient Operating Temperature -30 to 50° C (-22 to 122° F)

Ambient Operating Humidity 5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.1.120 and later

Mobile App iOS™ version 10.20.2 and later

Android™ version 10.21.7 and later
