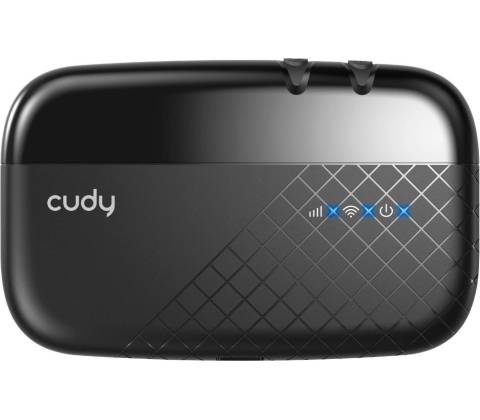

Cudy N150

4G LTE Mobile Wi-Fi

Share 4G connection with up to 150 Mbps download/50 Mbps upload speeds

Support FDD and TDD bands

Supports up to 11 devices simultaneously (10 Wireless+1 Wired) 2000 mAh battery for 8 hours of usage

Specifications

Dimensions 97 x 61 x 15.5mm

Weight 92g

Form MiFi / Pocket Router

Communication

System (WAN)

Chipset Qualcomm MDM9x07 / MDM9x25

Frequency Bands

LTE B1/B3/B7/B8/B20/B38/B40/B41

UMTS B1/B3/B8

Bandwidth

LTE Band 1.4/3/5/10/15/20 MHz

Modulation

Downlink QPSK/16-QAM/64-QAM

Uplink QPSK/16-QAM

Antenna

Primary Internal

Diversity Internal, UMTS Optional

RF Power Level

LTE FDD Power Class 3 (23 +/-2dBm)

UMTS Power Class 3 (24 +1.7/-3.7dBm)

Data Rate 4G 3GPP R10, Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps 3G 3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps

WLAN

Wi-Fi

Chipset Realtek 8192ES

Frequency 2.4GHz

Protocol 802.11b/g/n

Channel 1~13

Antenna Internal

Data Rate 802.11b Up to 11 Mbps 802.11g Up to 54 Mbps 802.11n Up to 150 Mbps

Interface

USB USB2.0

USIM Single, 4FF

LED

POWER Power/Battery Status Indicator

Network 4G/3G/2G Network Status Indicator

Wi-Fi Wi-Fi Status Indicator

WebUI

System

Connection Status

Statistics

Samba (optional)

Device Management

Power Mangement

Mobile Service

Automatic APN matching according to USIM

Auto Data Connection

PIN/PUK Management

Network Mode Selection(2G/3G/LTE/Auto)

Router

USB RNDIS Device

Up to 10 Wi-Fi users/devices

DHCP Server

IPv4/v6

VPN Passthrough

Firewall

WPS

Security via WEP, WPA-PSK, WPA2-PSK

Wi-Fi Settings

Battery

Type Li-ion Polymer Battery

Capacity 2000mAh

Endurance 5-6 hours (normal network situation)

Operation System

Windows XP/7/8/10

MAC OS 10.7+

Linux Ubuntu 13.04+

Browser IE9+, Firefox, Google Chrome, Safari, Opera

Environment

Power Supply USB, 5V1A

Working Temperature 0°C to 35°C

Storage Temperature -20°C to 60°C

Certification 3GPP Compliance CE/FCC/GCF, upon customer's requirement

Material RoHS
